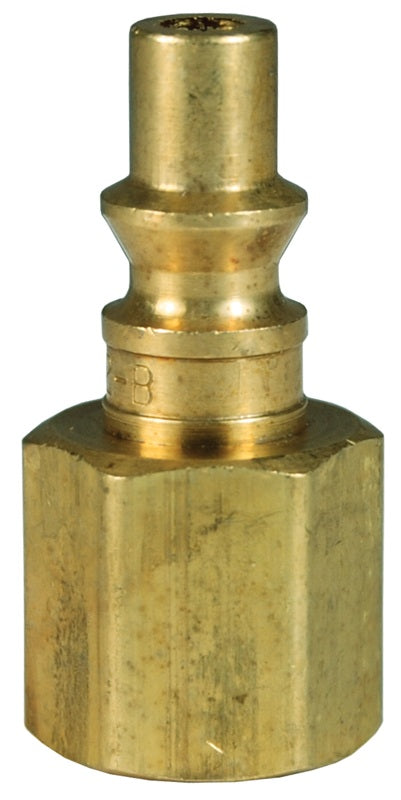

M2F2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPTF x 1/4" ARO Interchange | Plug | Brass
M2F2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPTF x 1/4" ARO Interchange | Plug | Brass
M2F2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPTF x 1/4" ARO Interchange | Plug | Brass

M2F2-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/4" Female NPTF x 1/4" ARO Interchange | Plug | Brass

Save $1.41 Save $1.41
$3.52
$3.52 - $3.52
$3.52
$2.11
$2.11 - $2.11
$2.11

Dixon Valve & Coupling

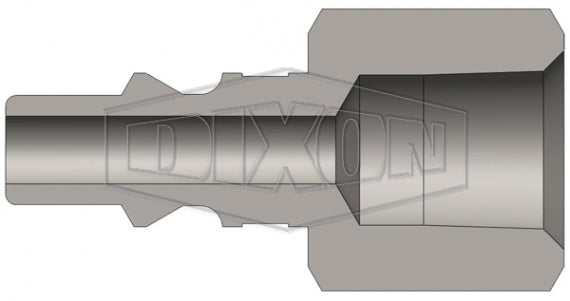

Pneumatic Coupling: M-Series ARO Interchange Plug (Female Threads)
Specifications for Variant SKU: M2F2-B Dixon
Series: M-Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male ARO 210 QD Interchange, 1/4in Female NPTF
Material(s): Brass
Compatibility & Interchange:
  • Automatic couplings interchange with ARO 210/310 and Hansen 210/310
  • Manual Couplings Interchange with Parker 50-Series and Amflow Type 'B'
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
M-Series | ARO Interchange Plug (Female Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
M2F2 Plug/Male 1/4" 1/4" - 18 Female NPTF Steel 1.57"
(39.9mm)		 0.79"
(20.1mm)		 11/16"
  • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
  • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
    M2F2-B Plug/Male 1/4" 1/4" - 18 Female NPTF Brass 1.57"
    (39.9mm)    		 0.79"
    (20.1mm)    		 11/16"
    • Auto Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 5,000 PSI (345 bar)
    • Manual Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,700 PSI (876 bar)
      M2F3 Plug/Male 1/4" 3/8" - 18 Female NPTF Steel 1.57"
      (39.9mm)      		 1.01"
      (25.7mm)      		 7/8"
      • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
      • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
        M3F3 Plug/Male 3/8" 3/8" - 18 Female NPTF Steel 1.82"
        (46.2mm)        		 1.01"
        (25.7mm)        		 7/8"
        • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 3,300 PSI (228 bar)
