MBX-04-06 by Kurt Hydraulics | Jump Size | Male O-Ring Boss | Swivel | for 1/4" Hose ID

MBX-04-06 by Kurt Hydraulics | Jump Size | Male O-Ring Boss | Swivel | for 1/4" Hose ID

Save $4.59 Save $4.59
$11.48
$11.48 - $11.48
$11.48
$6.89
$6.89 - $6.89
$6.89

by Kurt Hydraulics
MBX - Male Boss O-Ring Swivel

Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: MBX-04-06 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/8in Male O-Ring Boss
Special Properties: Swivel, Jump Size

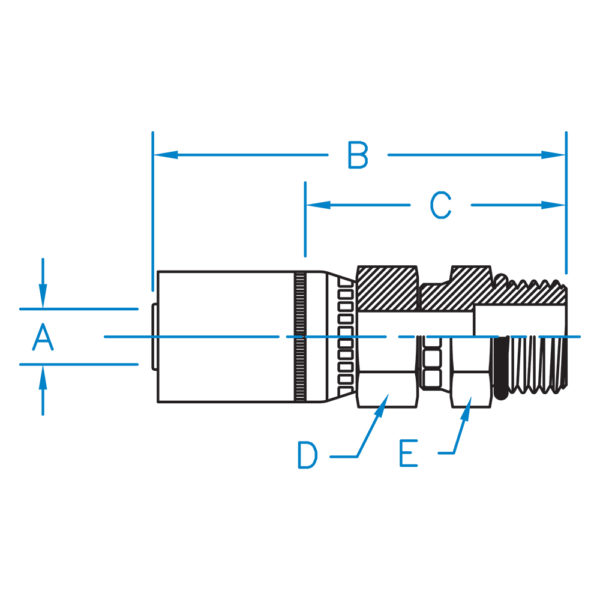

Part Number A B C D E Hose ID
(In)		 Thread
MBX-04-04 0.250 2.750 1.495 9/16 11/16 1/4" 7/16-20
MBX-04-05 0.250 N/A N/A N/A N/A 1/4" 1/2-20
MBX-04-06 0.250 2.790 1.531 9/16 3/4 1/4" 9/17-18
MBX-06-04 0.375 3.071 1.57 11/16 11/16 3/8" 7/16-20
MBX-06-06 0.375 3.110 1.636 11/16 3/4 3/8" 9/16-18
MBX-06-08 0.375 3.180 1.624 11/16 15/16 3/8" 3/4-16
MBX-08-08 0.500 3.280 2.027 7/8 15/16 1/2" 3/4-16
MBX-08-10 0.500 3.490 1.849 7/8 1.000 1/2" 7/8-14
MBX-12-12 0.750 3.915 2.342 1-1/8 1-1/8 3/4" 1-1/16-12
MBX-16-16 N/A N/A N/A N/A N/A N/A N/A

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
