MBX90-08-08 by Kurt Hydraulics | Male O-Ring Boss | Swivel | 90° Elbow | for 1/2" Hose ID

Name: MBX90-08-08 by Kurt Hydraulics | Male O-Ring Boss | Swivel | 90° Elbow | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: MBX90-08-08 Kurt
Price: 13.44 USD
Availability: InStock

Save $1.68

$15.12

$15.12 - $15.12

$15.12

$13.44

$13.44 - $13.44

$13.44

by Kurt Hydraulics
MBX90 - Male Boss O-Ring 90 deg. Swivel Block Style

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: MBX90-08-08 Kurt
Series:	MBX90 Series
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Hose Barb, 1/2in Male O-Ring Boss
Special Properties:	Swivel

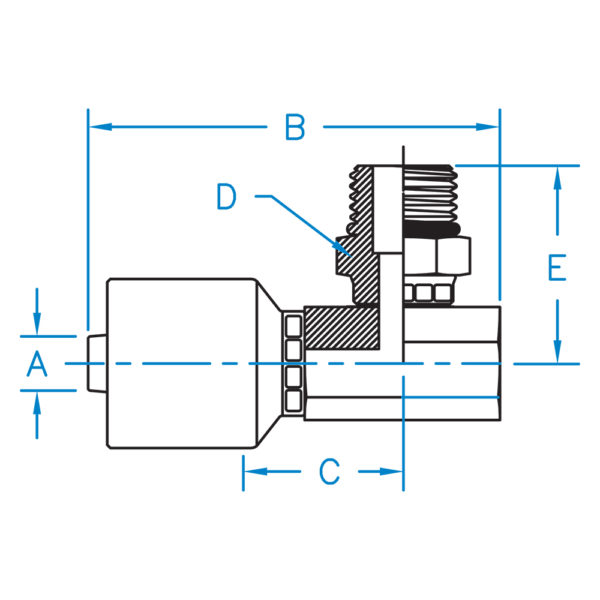

Part Number	A	B	C	D	E	Hose ID (In)	Thread
MBX90-04-04	0.250	2.312	0.650	11/16	1.410	1/4"	7/16-20
MBX90-04-06	0.250	2.312	0.650	3/4	1.450	1/4"	9/16-18
MBX90-06-06	0.375	2.770	0.741	3/4	1.543	3/8"	9/16-18
MBX90-06-08	0.375	2.770	0.741	15/16	1.610	3/8"	3/4-16
MBX90-06-10	0.375	2.770	0.741	1.000	1.610	3/8"	7/8-14
MBX90-08-08	0.500	2.910	0.875	15/16	1.680	1/2"	3/4-16
MBX90-08-10	0.500	2.910	0.875	1.000	1.740	1/2"	7/8-14
MBX90-10-10	0.625	N/A	N/A	N/A	N/A	5/8"	7/8-14
MBX90-12-12	0.750	3.630	1.000	1-1/8	2.360	3/4"	1-1/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
