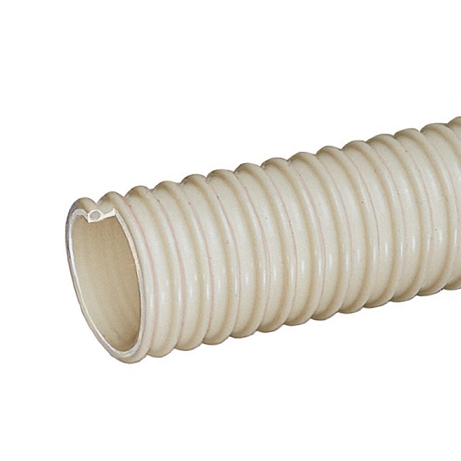

MH200X100 Kuriyama Tigerflex MH Series Marine Hose - PVC Suction Hose - 2" - 100ft

MH200X100 Tigerflex by Kuriyama | MH Series | Marine Hose | Suction Hose | 2" ID | PVC | 100ft Length

Save $38.52

$385.19

$385.19 - $385.19

$385.19

$346.67

$346.67 - $346.67

$346.67

Kuriyama Tigerflex MH™ Series Marine PVC Suction Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: MH200X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	MH Series
Hose Color(s):	White/Off-White
Internal Diameter:	2in
Outer Diameter:	2.32in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Drain lines, Marine bilge discharge, Marine plumbing, Recreational vehicle (RV) plumbing	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-4 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Odor-resistant Tube - Special additives help eliminate the build-up of unwanted odors. Convoluted Outer Cover - Provides increased hose f1exibility. Easy Installation - Ideal for working in confi ned areas. Permits installers to make smooth, tight turns. Requires fewer fittings than rigid pipe.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
MH100X100	1"	25.4mm	1.22"	31.0mm	45 PSI	15 PSI	Full	24 in.Hg	1"	100ft	0.15 lbs
MH125X100	1-1/4"	32.0mm	1.49"	38.0mm	40 PSI	12 PSI	Full	24 in .Hg	1.5"	100ft	0.20 lbs
MH150X100	1-1/2"	38.1mm	1.77"	45.0mm	40 PSI	12 PSI	Full	24 in .Hg	2"	100ft	0.25 lbs
MH200X100	2"	50.8mm	2.32"	59.0mm	35 PSI	10 PSI	26 in .Hg	20 in .Hg	2.5"	100ft	0.31 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
