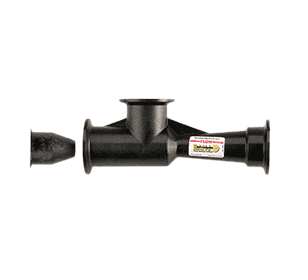

MHV220A Banjo Polypropylene Inductor - 2" Full Port Manifold Inductor - Pressure at Pump: 50 PSI - Volume Draw: 49 GPM - Opening Size: 9/16"

MHV220A by Banjo | Manifold Flange Connections | 2" Full Port Manifold Inductor | Volume Draw: 49 GPM | Opening Size: 9/16" | Pressure at Pump: 225 PSI | Polypropylene | Pack of 5

Save $54.68

$492.15

$492.15 - $492.15

$492.15

$437.47

$437.47 - $437.47

$437.47

Banjo Manifold Flange Connections - Manifold Inductor Systems - Inductors - Polypropylene

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: MHV220A Banjo \| 5 \|
Shape (Orientation):	Tee
Ends Configuration:	2in Full Port Manifold Flange, 2in Full Port Manifold Flange, 2in Full Port Manifold Flange, Some Ends Match
Material(s):	Polypropylene

Applications:
Fluids
Features:
Threaded or manifold ends Glass reinforced polypropylene Note: Each venturi comes in two pieces Note: The inductor is designed for use with a volume pump. Typical volumes and pressures used to operate the venturi would be in the 80 to 240 US GPM range at pressures from 26 to 52 PSI Note: US GPM. Tests done with water at ambient temperature. Pump used for test was a 2" Banjo (5 vane impeller) driven by a 5.5 hp Honda gas motor. Performance may vary depending on pump used & product being pumped.

Part Number	Description	Pressure at Pump	Volume Draw	Opening Size
HV200	2" MPT Poly Inductor	225 PSI	49 GPM	7/16"
MHV200	2" Manifold Poly Inductor with 1-1/2" Port	300 PSI	37 GPM	5/16"
MHV220A	2" Full Port Manifold Poly Inductor	225 PSI	49 GPM	9/16"

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
