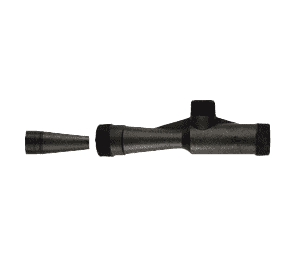

HV200 Banjo Polypropylene Inductor - 2" MPT Inductor - Pressure at Pump: 50 PSI - Volume Draw: 49 GPM - Opening Size: 7/16"

HV200 by Banjo | Manifold Flange Connections | 2" MPT Inductor | Pressure at Pump: 225 PSI | Volume Draw: 49 GPM | Opening Size: 7/16" | Polypropylene

Save $14.96 Save $14.96
$97.49
$97.49 - $97.49
$97.49
$82.53
$82.53 - $82.53
$82.53

Banjo Manifold Flange Connections - Manifold Inductor Systems - Inductors - Polypropylene

Specifications for Variant SKU: HV200 Banjo
Shape (Orientation): Tee
Ends Configuration: 2in Male NPT, 2in Male NPT, 2in Male NPT, Some Ends Match
Material(s): Polypropylene
Applications:
  • Fluids
Features:
  • Threaded or manifold ends
  • Glass reinforced polypropylene
  • Note: Each venturi comes in two pieces
  • Note: The inductor is designed for use with a volume pump. Typical volumes and pressures used to operate the venturi would be in the 80 to 240 US GPM range at pressures from 26 to 52 PSI
  • Note: US GPM. Tests done with water at ambient temperature. Pump used for test was a 2" Banjo (5 vane impeller) driven by a 5.5 hp Honda gas motor. Performance may vary depending on pump used & product being pumped.
Part Number Description Pressure at Pump Volume Draw Opening Size
HV200 2" MPT Poly Inductor 225 PSI 49 GPM 7/16"
MHV200 2" Manifold Poly Inductor with 1-1/2" Port 300 PSI 37 GPM 5/16"
MHV220A 2" Full Port Manifold Poly Inductor 225 PSI 49 GPM 9/16"

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
