MPX-04-04-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/4" Male NPTF Swivel | Carbon Steel

MPX-04-04-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/4" Male NPTF Swivel | Carbon Steel

Save $0.64 Save $0.64
$5.76
$5.76 - $5.76
$5.76
$5.12
$5.12 - $5.12
$5.12

Kurt Hydraulics
MPX - NPTF Male Pipe Swivel
Specifications for Variant SKU: MPX-04-04-K2 Kurt
Series: K2 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 1/4in Male NPTF
Material(s): Carbon Steel
Special Properties: Swivel

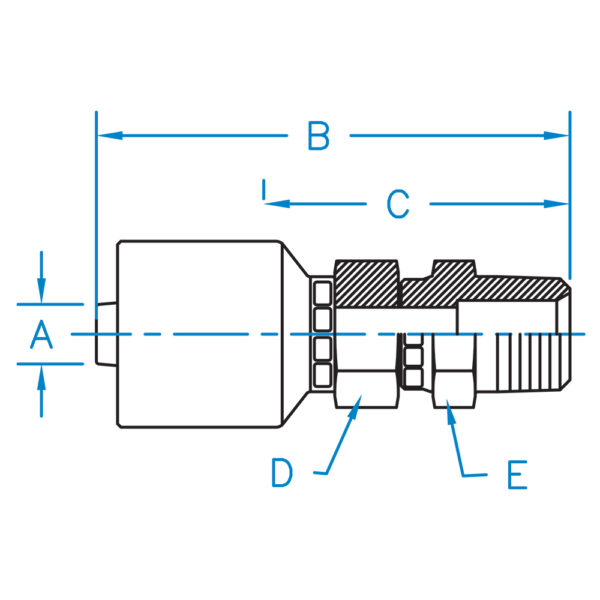

Part Number Hose I.D. (in.) B C D E Thread
MPX-04-02-K2 1/4" 2.32" 1.26" 9/16" 1/2" 1/8"-27
MPX-04-04-K2 1/4" 2.60" 1.54" 9/16" 11/16" 1/4"-18
MPX-04-06-K2 1/4" 2.60" 1.54" 9/16" 3/4" 3/8"-18
MPX-06-04-K2 3/8" 2.99" 1.62" 11/16" 11/16" 1/4"-18
MPX-06-06-K2 3/8" 2.99" 1.62" 11/16" 3/4" 3/8"-18
MPX-06-08-K2 3/8" 3.24" 1.87" 3/4" 15/16" 1/2"-14
MPX-08-06-K2 1/2" 3.02" 1.68" 11/16" 3/4" 3/8"-18
MPX-08-08-K2 1/2" 3.27" 1.93" 11/16" 7/8" 1/2"-14
MPX-08-12-K2 1/2" 3.33" 1.99" 1" 1-1/8" 3/4"-14
