MPX90-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Male Pipe Swivel Block Style | 90° Elbow | Carbon Steel

MPX90-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" Male Pipe Swivel Block Style | 90° Elbow | Carbon Steel

Save $19.84 Save $19.84
$49.60
$49.60 - $49.60
$49.60
$29.76
$29.76 - $29.76
$29.76

Kurt Hydraulics
MPX90 - Male Pipe 90° Swivel Block Style
Specifications for Variant SKU: MPX90-04-04-K2 Kurt
Series: K2 Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Hose Barb x 1/4in Male NPTF
Material(s): Carbon Steel
Special Properties: Swivel

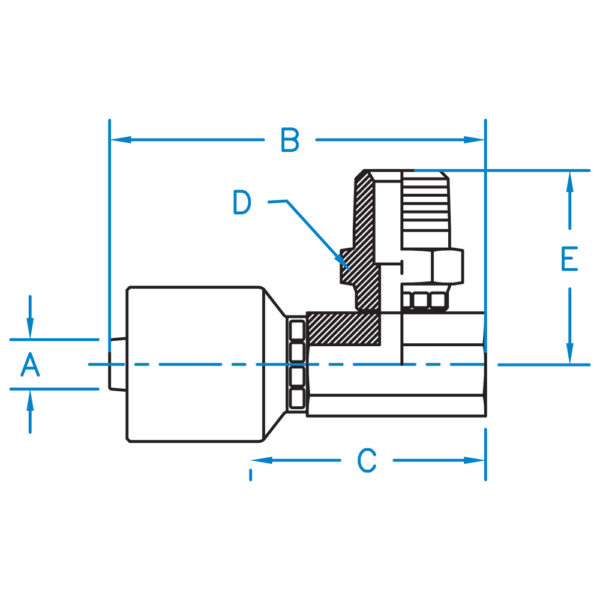

Part Number Hose I.D. (in.) B C D E Thread
MPX90-04-02-K2 1/4" 2.31" 0.65" 1/2" 1.30" 1/8 – 27
MPX90-04-04-K2 1/4" 2.03" 0.97" 11/16" 1.54" 1/4 – 18
MPX90-04-06-K2 1/4" 2.03" 0.56" 3/4" 1.55" 3/8 – 18
MPX90-06-04-K2 3/8" 3.01" 1.11" 11/16" 1.64" 1/4 – 18
MPX90-06-06-K2 3/8" 2.56" 1.19" 3/4" 1.72" 3/8 – 18
MPX90-06-08-K2 3/8" 2.56" 0.66" 7/8" 1.85" 1/2 – 14
MPX90-08-08-K2 1/2" 2.64" 1.33" 15/16" 1.92" 1/2 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
