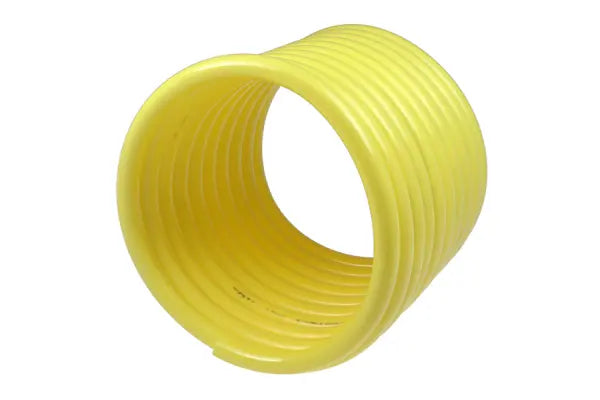

N316-100 by Coilhose | Coiled Air Hose | 3/16" Hose ID | No Fittings | Yellow | Nylon | 100ft

N316-100 by Coilhose | Coiled Air Hose | 3/16" Hose ID | No Fittings | Yellow | Nylon | 100ft

Save $6.11 Save $6.11
$54.96
$54.96 - $54.96
$54.96
$48.85
$48.85 - $48.85
$48.85
Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 3/16" ID
Specifications for Variant SKU: N316-100 Coilhose
Hose Color(s): Yellow
Material(s): Nylon
Special Properties: High Temperature
Overview:
  • This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
  • Heavy duty brass fittings assure longer service life in rugged industrial environments.
  • High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.

Specifications:
Model Tube I.D Tube O.D Wall Thickness W Pat 70° F Nominal Coil O.D. Retracted Length Recommended Working Length Nominal Weight 25' Standard Color
N18-25 1/8" .182/.189 .029+/-.003 315 PSI 1-1/2" 14-3/8" 22' 4 oz. Blue
N316-25 3/16" .247/.253 .031+/-.003 230 PSI 2-7/8" 9-1/2" 22' 8 oz. Yellow
N14-25 1/4" .305/.313 .033+/-.003 185 PSI 3-1/2" 10-1/2" 22' 10 oz. Yellow
N516-25 5/16" .369/.377 .037+/-.003 175 PSI 4-5/8" 10-1/2" 22' 12 oz. Yellow
N38-25 3/8" .465/.475 .045+/-.003 165 PSI 5-5/8" 10-1/4" 21' 16 oz. Yellow
N12-25 1/2" .620/.630 .062+/-.003 170 PSI 9" 9" 18' 30 oz. Yellow
N34-25 3/4" .878/.886 .066+/-.003 120 PSI 12-1/2" 9" 17' 34 oz. Yellow

Part No Inside
Diameter		 Overall
Length		 Fittings Color Retracted
Length		 Working
Length
N316-12 3/16" 12 ft 1/4" 2 Rigid MPT Yellow 4.5" 9.6ft
N316-12A 3/16" 12 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 4.5" 9.6ft
N316-12B 3/16" 12 ft 1/4" 2 Swivel MPT Yellow 4.5" 9.6ft
N316-17 3/16" 17 ft 1/4" 2 Rigid MPT Yellow 6.5" 13.6ft
N316-17A 3/16" 17 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 6.5" 13.6ft
N316-17B 3/16" 17 ft 1/4" 2 Swivel MPT Yellow 6.5" 13.6ft
N316-25 3/16" 25 ft 1/4" 2 Rigid MPT Yellow 9.5" 20ft
N316-25A 3/16" 25 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 9.5" 20ft
N316-25B 3/16" 25 ft 1/4" 2 Swivel MPT Yellow 9.5" 20ft
N316-50 3/16" 50 ft 1/4" 2 Rigid MPT Yellow 18.8" 40ft
N316-50A 3/16" 50 ft 1/4" 1 Rigid / 1 Swivel MPT Yellow 18.8" 40ft
N316-50B 3/16" 50 ft 1/4" 2 Swivel MPT Yellow 18.8" 40ft
N316-100 3/16" 100 ft None Yellow 37.5" 80ft
1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).
