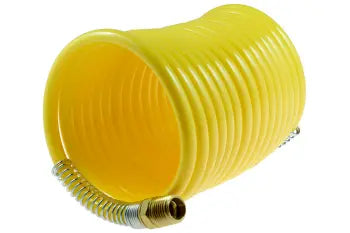

N316-25A by Coilhose | Coiled Air Hose | 3/16" Hose ID | 1/4" Male NPT Thread | 1 Swivel/1 Rigid Fittings | Yellow | Nylon | 25ft

Save $14.83

$37.07

$37.07 - $37.07

$37.07

$22.24

$22.24 - $22.24

$22.24

Coilhose Pneumatics - Coiled Hose - Nylon Air Hose - 3/16" ID

Specifications for Variant SKU: N316-25A Coilhose
Hose Color(s):	Yellow
Material(s):	Nylon
Special Properties:	Swivel, High Temerature

Overview:
This lightweight, permanently-coiled hose is manufactured from tough, abrasion-resistant Nylon 11 and designed to withstand temperatures between -60° F and +200° F. Each assembly is supplied with durable brass compression fittings, tube inserts and hose ferrules. Spring guards for additional strain relief are also provided on all assemblies, except 3/4".
Benefits:
Heavy duty brass fittings assure longer service life in rugged industrial environments. High quality Nylon 11 formulation resists moisture absorption, making it the superior nylon tubing choice for most applications.

Specifications:
Model	Tube I.D	Tube O.D	Wall Thickness	W Pat 70° F	Nominal Coil O.D.	Retracted Length	Recommended Working Length	Nominal Weight 25'	Standard Color
N18-25	1/8"	.182/.189	.029+/-.003	315 PSI	1-1/2"	14-3/8"	22'	4 oz.	Blue
N316-25	3/16"	.247/.253	.031+/-.003	230 PSI	2-7/8"	9-1/2"	22'	8 oz.	Yellow
N14-25	1/4"	.305/.313	.033+/-.003	185 PSI	3-1/2"	10-1/2"	22'	10 oz.	Yellow
N516-25	5/16"	.369/.377	.037+/-.003	175 PSI	4-5/8"	10-1/2"	22'	12 oz.	Yellow
N38-25	3/8"	.465/.475	.045+/-.003	165 PSI	5-5/8"	10-1/4"	21'	16 oz.	Yellow
N12-25	1/2"	.620/.630	.062+/-.003	170 PSI	9"	9"	18'	30 oz.	Yellow
N34-25	3/4"	.878/.886	.066+/-.003	120 PSI	12-1/2"	9"	17'	34 oz.	Yellow

Part No	Inside Diameter	Overall Length	Fittings	Color	Retracted Length	Working Length
N316-12	3/16"	12 ft	1/4" 2 Rigid MPT	Yellow	4.5"	9.6ft
N316-12A	3/16"	12 ft	1/4" 1 Rigid / 1 Swivel MPT	Yellow	4.5"	9.6ft
N316-12B	3/16"	12 ft	1/4" 2 Swivel MPT	Yellow	4.5"	9.6ft
N316-17	3/16"	17 ft	1/4" 2 Rigid MPT	Yellow	6.5"	13.6ft
N316-17A	3/16"	17 ft	1/4" 1 Rigid / 1 Swivel MPT	Yellow	6.5"	13.6ft
N316-17B	3/16"	17 ft	1/4" 2 Swivel MPT	Yellow	6.5"	13.6ft
N316-25	3/16"	25 ft	1/4" 2 Rigid MPT	Yellow	9.5"	20ft
N316-25A	3/16"	25 ft	1/4" 1 Rigid / 1 Swivel MPT	Yellow	9.5"	20ft
N316-25B	3/16"	25 ft	1/4" 2 Swivel MPT	Yellow	9.5"	20ft
N316-50	3/16"	50 ft	1/4" 2 Rigid MPT	Yellow	18.8"	40ft
N316-50A	3/16"	50 ft	1/4" 1 Rigid / 1 Swivel MPT	Yellow	18.8"	40ft
N316-50B	3/16"	50 ft	1/4" 2 Swivel MPT	Yellow	18.8"	40ft
N316-100	3/16"	100 ft	None	Yellow	37.5"	80ft

1/8" I.D. is available in blue only. All other hoses are available in yellow (standard) or red (contact customer service).
