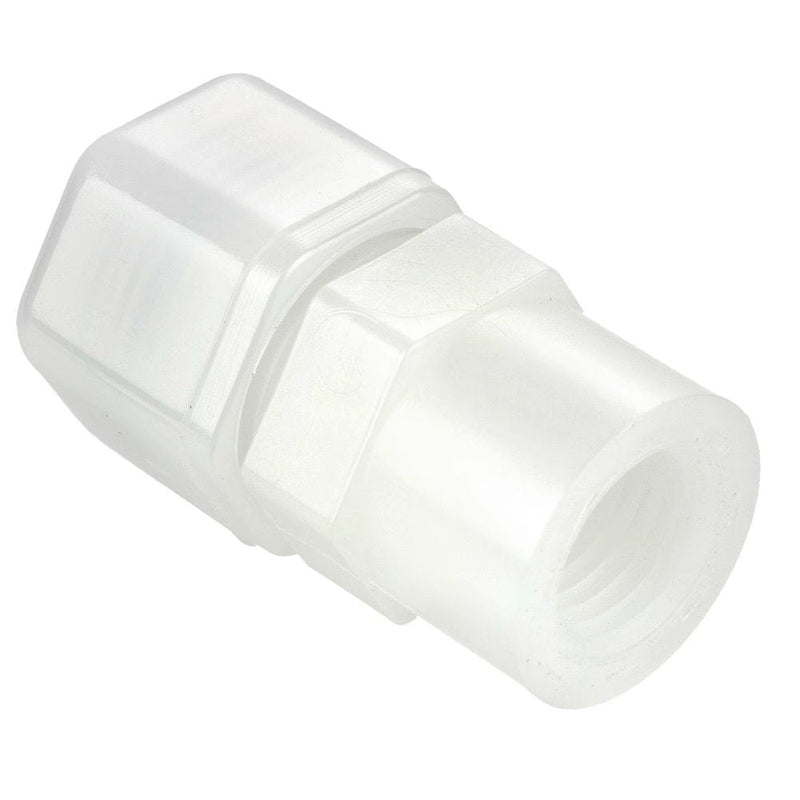

N4FC4 by Parker | Threaded Fitting | 1/4" Tube OD x 1/4" Female NPTF Thread | 11/16" Hex | 1.44" Length | Straight | Natural | Nylon

N4FC4 by Parker | Threaded Fitting | 1/4" Tube OD x 1/4" Female NPTF Thread | 11/16" Hex | 1.44" Length | Straight | Natural | Nylon

Save $0.18 Save $0.18
$2.42
$2.42 - $2.42
$2.42
$2.24
$2.24 - $2.24
$2.24

by Parker Hannifin
Fast & Tite® Fittings:FC - Female Connector
Specifications for Variant SKU: N4FC4 Parker
Brand: Fast & Tite®
Series: FC Series
Shape (Orientation): Straight
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) L Flow Diameter (D)
P4FC2 N4FC2 1/4" 1/8" 11/16" 1.31" .170"
P4FC4 N4FC4 1/4" 1/4" 11/16" 1.44" .170"
P6FC4 N6FC4 3/8" 1/4" 13/16" 1.61" .250"
P6FC6 N6FC6 3/8" 3/8" 13/16" 1.64" .250"
P6FC8 N6FC8 3/8" 1/2" 13/16" 1.75" .250"
P8FC6 N8FC6 1/2" 3/8" 1" 1.70" .375"
P8FC8 N8FC8 1/2" 1/2" 1" 1.85" .375"
P10FC8 N10FC8 5/8" 1/2" 1-1/8" 1.96" .500"
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
