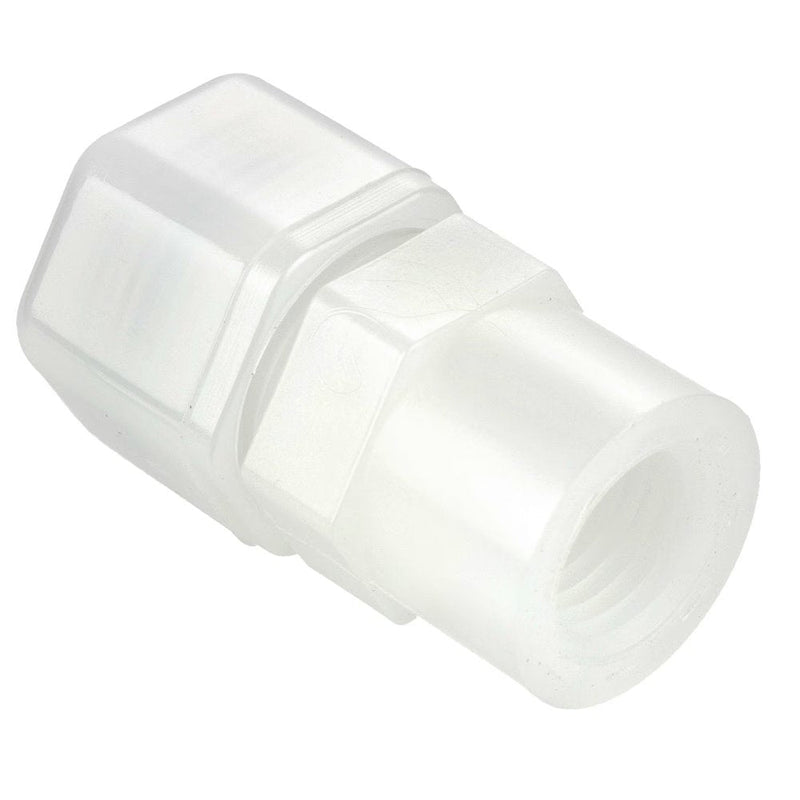

N8FC6 by Parker | Threaded Fitting | 1/2" Tube OD x 3/8" Female NPTF Thread | 1" Hex | 1.70" Length | Straight | Natural | Nylon

N8FC6 by Parker | Threaded Fitting | 1/2" Tube OD x 3/8" Female NPTF Thread | 1" Hex | 1.70" Length | Straight | Natural | Nylon

Save $2.35 Save $2.35
$5.87
$5.87 - $5.87
$5.87
$3.52
$3.52 - $3.52
$3.52

by Parker Hannifin
Fast & Tite® Fittings:FC - Female Connector
Specifications for Variant SKU: N8FC6 Parker
Brand: Fast & Tite®
Series: FC Series
Shape (Orientation): Straight
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) L Flow Diameter (D)
P4FC2 N4FC2 1/4" 1/8" 11/16" 1.31" .170"
P4FC4 N4FC4 1/4" 1/4" 11/16" 1.44" .170"
P6FC4 N6FC4 3/8" 1/4" 13/16" 1.61" .250"
P6FC6 N6FC6 3/8" 3/8" 13/16" 1.64" .250"
P6FC8 N6FC8 3/8" 1/2" 13/16" 1.75" .250"
P8FC6 N8FC6 1/2" 3/8" 1" 1.70" .375"
P8FC8 N8FC8 1/2" 1/2" 1" 1.85" .375"
P10FC8 N10FC8 5/8" 1/2" 1-1/8" 1.96" .500"
