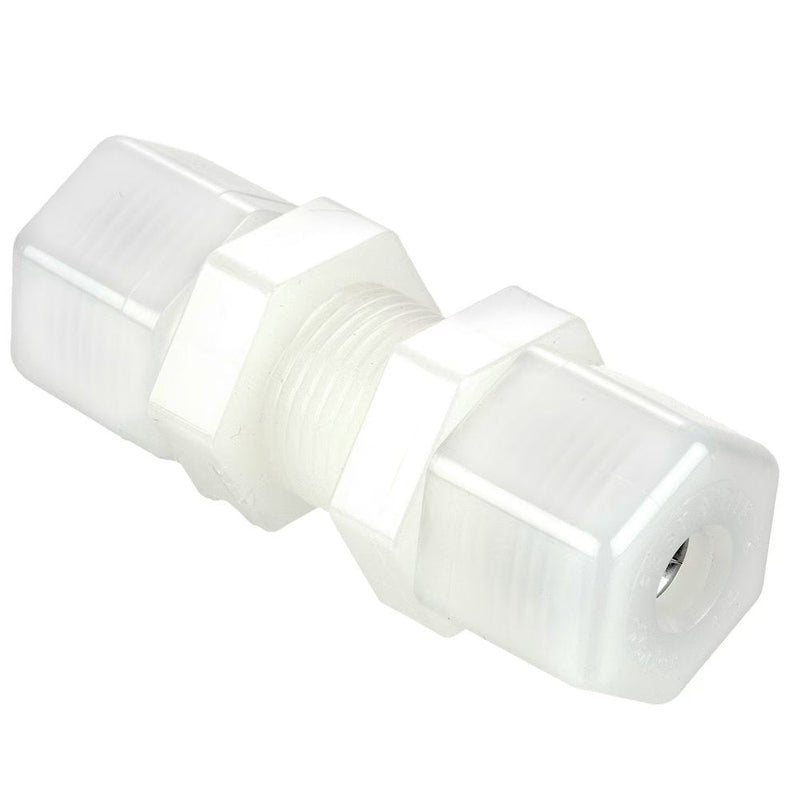

N6BU6 by Parker | Bulkhead Union | 3/8" Tube OD | 15/16" Hex | 2.61" Length | Straight | Natural | Nylon

N6BU6 by Parker | Bulkhead Union | 3/8" Tube OD | 15/16" Hex | 2.61" Length | Straight | Natural | Nylon

Save $4.48 Save $4.48
$11.20
$11.20 - $11.20
$11.20
$6.72
$6.72 - $6.72
$6.72

by Parker Hannifin
Fast & Tite® Fittings:BU - Bulkhead Union
Specifications for Variant SKU: N6BU6 Parker
Brand: Fast & Tite®
Series: BU Series
Shape (Orientation): Straight
Material(s): Nylon, 302 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number White Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. A Ref. Hex (C) Overall Length (L) Max (P) Flow Diameter (D) Bulkhead Hole Drill Size
P4BU4 W4BU4 N4BU4 1/4" 1/4" 13/16" 2.17" 3/8" .170" 21/32"
P5BU5 - N5BU5 5/16" 1/4" 13/16" 2.17" 3/8" .187" 21/32"
P6BU6 W6BU6 N6BU6 3/8" 9/32" 15/16" 2.61" 1/2" .250" 25/32"
P8BU8 W8BU8 N8BU8 1/2" 5/16" 1-5/32" 2.75" 1/2" .375" 31/32"
