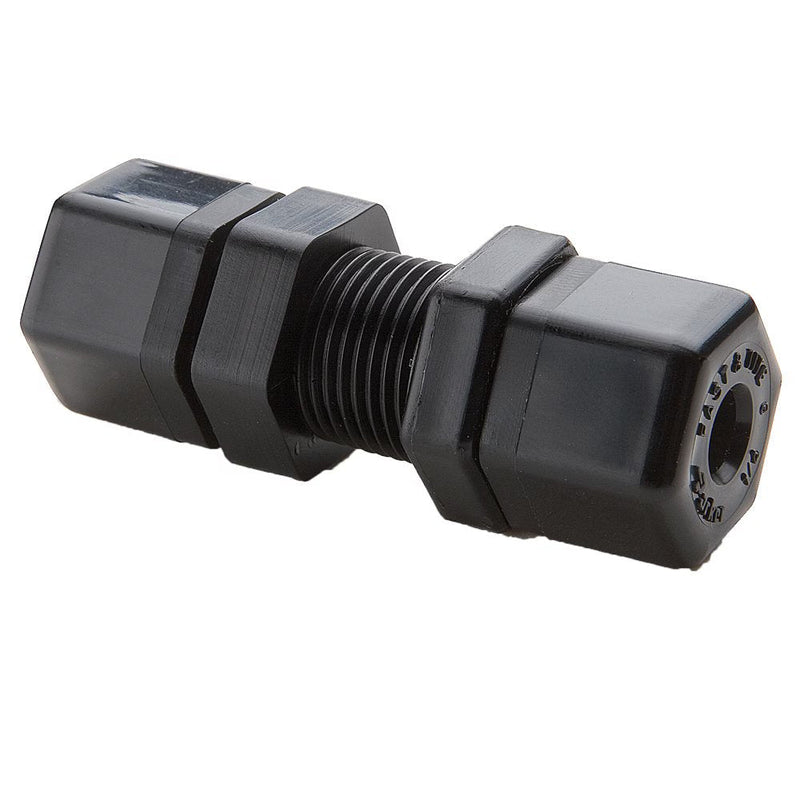

P6BU6 by Parker | Bulkhead Union | 3/8" Tube OD | 15/16" Hex | 2.61" Length | Straight | Black | Polypropylene

Save $0.34

$4.70

$4.70 - $4.70

$4.70

$4.36

$4.36 - $4.36

$4.36

by Parker Hannifin
Fast & Tite® Fittings:BU - Bulkhead Union

Quantity

Specifications for Variant SKU: P6BU6 Parker
Brand:	Fast & Tite®
Series:	BU Series
Shape (Orientation):	Straight
Material(s):	Polypropylene, 302 Stainless Steel
Special Properties:	Food Grade


Product Features:	Available in black polypropylene and white nylon White polypropylene available as a non-standard part 302 stainless steel grab ring Nitrile O-ring FDA compliant material NSF/ANSI-51
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water End-of-Arm Tooling Beverages Food Cooling Systems Vacuum
Temperature Range:	0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:	Thermoplastic Soft Metal Glass


Black Polypropylene Part Number	White Polypropylene Part Number	Natural Nylon Part Number	Nom. Tube O.D.	A Ref.	Hex (C)	Overall Length (L)	Max (P)	Flow Diameter (D)	Bulkhead Hole Drill Size
P4BU4	W4BU4	N4BU4	1/4"	1/4"	13/16"	2.17"	3/8"	.170"	21/32"
P5BU5	-	N5BU5	5/16"	1/4"	13/16"	2.17"	3/8"	.187"	21/32"
P6BU6	W6BU6	N6BU6	3/8"	9/32"	15/16"	2.61"	1/2"	.250"	25/32"
P8BU8	W8BU8	N8BU8	1/2"	5/16"	1-5/32"	2.75"	1/2"	.375"	31/32"
