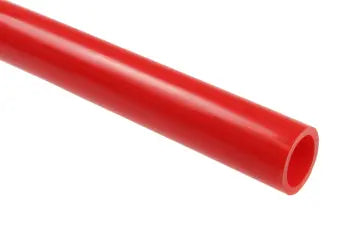

NC0540-100R by Coilhose | Tubing | 5/16" OD x .232" ID | .040" Wall thickness | Red | Nylon | 100ft

NC0540-100R by Coilhose | Tubing | 5/16" OD x .232" ID | .040" Wall thickness | Red | Nylon | 100ft

Save $7.45 Save $7.45
$67.05
$67.05 - $67.05
$67.05
$59.60
$59.60 - $59.60
$59.60
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 5/16" OD x .232" ID
Specifications for Variant SKU: NC0540-100R Coilhose
Hose Color(s): Red
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC0540-100Y NC0540-500Y Yellow 5/16" x .232" .040" 220 PSI
NC0540-100R NC0540-500R Red
NC0540-100N NC0540-500N Natural
NC0540-100G NC0540-500G Green
NC0540-100B NC0540-500B Blue
NC0540-100K NC0540-500K Black
