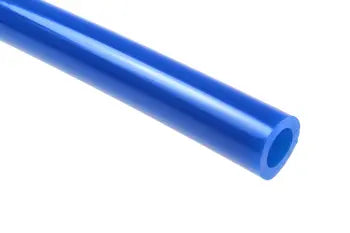

NC0540-100B by Coilhose | Tubing | 5/16" OD x .232" ID | .040" Wall thickness | Blue | Nylon | 100ft

Save $40.73

$101.82

$101.82 - $101.82

$101.82

$61.09

$61.09 - $61.09

$61.09

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 5/16" OD x .232" ID

Specifications for Variant SKU: NC0540-100B Coilhose
Hose Color(s):	Blue
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0540-100Y	NC0540-500Y	Yellow	5/16" x .232"	.040"	220 PSI
NC0540-100R	NC0540-500R	Red
NC0540-100N	NC0540-500N	Natural
NC0540-100G	NC0540-500G	Green
NC0540-100B	NC0540-500B	Blue
NC0540-100K	NC0540-500K	Black

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
