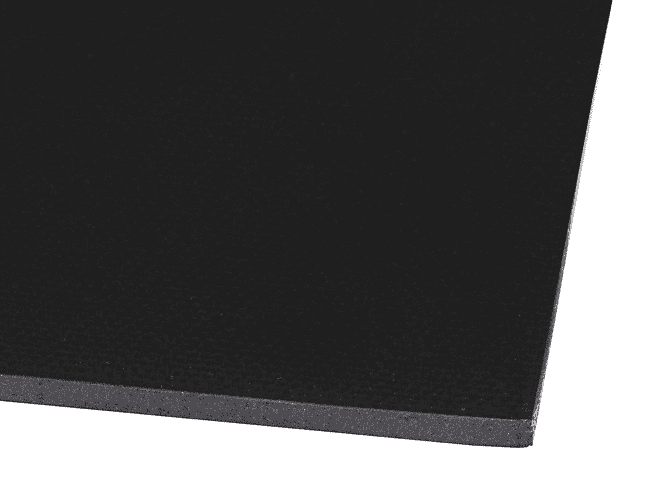

NDIA-2P04X48X50 by Kuriyama | Commercial Grade Neoprene Diaphragm Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/8" x 48" | 50ft Roll

NDIA-2P04X48X50 by Kuriyama | Commercial Grade Neoprene Diaphragm Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/8" x 48" | 50ft Roll

Save $38.87 Save $38.87
$1,390.37
$1,390.37 - $1,390.37
$1,390.37
$1,351.50
$1,351.50 - $1,351.50
$1,351.50

Kuriyama Industrial Sheet Rubber - Commercial Grade Black Neoprene Diaphragm Sheet Rubber

Package Quantity: 50 FT

Specifications for Variant SKU: NDIA-2P04X48X50 Kuriyama | 50 |

SPECIFICATIONS

Styles: 60 Duro hardness (Shore Durometer A) Polymer: Chloroprene reinforced with 14.5 oz./sq. yd.nylon fabric
Common Name: Nylon-reinforced Neoprene Sheet ISO/ASTM Designation: CR
Features & Properties:
  • Excellent physical properties.
  • (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition)
Part Number Gauge x Width in. ASTM Specification(SI units) Temp.Range Durometer Tensile Strength(PSI) Fabric Plies Finish Avg. Length(Linear Ft. /Roll) Weight(Lbs/Roll)
NDIA-1P02X48X50 1/16" x 48" D2000 - M2BC607 -20 deg. F to +180 deg. F 55 - 65 1015 PSI 1 Ply Plate 50ft 66 lbs
NDIA-2P04X48X50 1/8" x 48" D 2000 M2BC 607 -20 deg. F to +180 deg. F 55 - 65 1015 PSI 2 Ply Plate 50ft 167 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
