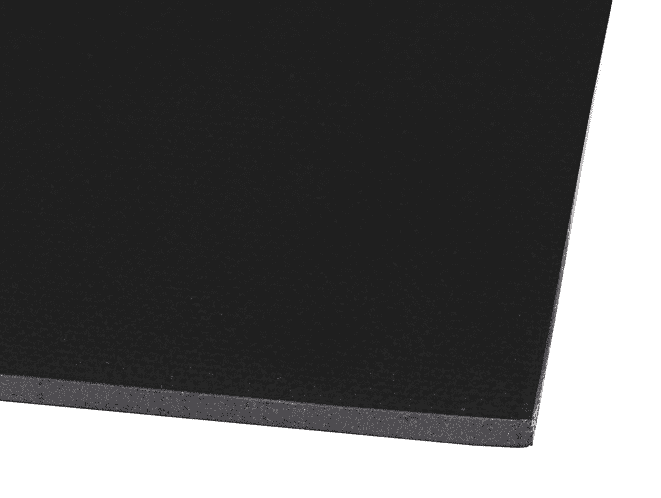

NDIA-1P02X48X50 by Kuriyama | Commercial Grade Neoprene Diaphragm Sheet Rubber | 60 Duro Hardness | Shore Durometer A | Black | 1/16" x 48" | 50ft Roll

Save $289.68

$1,013.88

$1,013.88 - $1,013.88

$1,013.88

$724.20

$724.20 - $724.20

$724.20

Kuriyama Industrial Sheet Rubber - Commercial Grade Black Neoprene Diaphragm Sheet Rubber

Package Quantity: 50 FT

Specifications for Variant SKU: NDIA-1P02X48X50 Kuriyama \| 50 \|

SPECIFICATIONS

Features & Properties:
Styles:	60 Duro hardness (Shore Durometer A)	Polymer:	Chloroprene reinforced with 14.5 oz./sq. yd.nylon fabric
Common Name:	Nylon-reinforced Neoprene Sheet	ISO/ASTM Designation:	CR
Excellent physical properties. (Properties shown based on Rubber Manufacturers Association Sheet Rubber Handbook, second edition)

Part Number	Gauge x Width in.	ASTM Specification(SI units)	Temp.Range	Durometer	Tensile Strength(PSI)	Fabric Plies	Finish	Avg. Length(Linear Ft. /Roll)	Weight(Lbs/Roll)
NDIA-1P02X48X50	1/16" x 48"	D2000 - M2BC607	-20 deg. F to +180 deg. F	55 - 65	1015 PSI	1 Ply	Plate	50ft	66 lbs
NDIA-2P04X48X50	1/8" x 48"	D 2000 M2BC 607	-20 deg. F to +180 deg. F	55 - 65	1015 PSI	2 Ply	Plate	50ft	167 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
