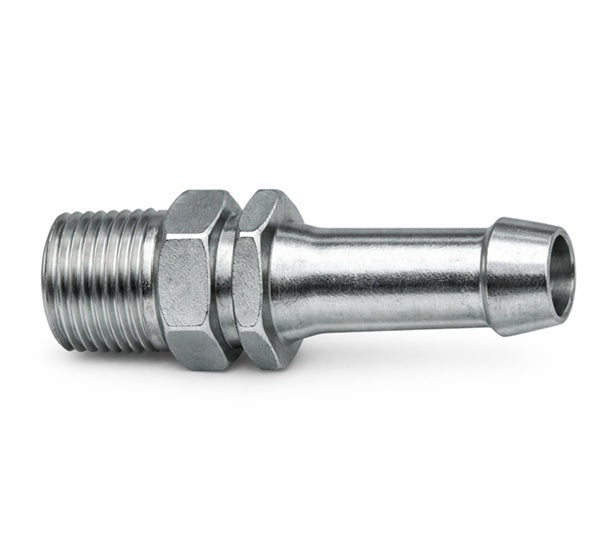

P300441 (HX-441) PUNCH-LOK® by PT-Coupling | Hex Lok Nipple Hose Fitting | 1/2" Hose Barb x 1/2" Male NPT | Single Groove | Plated Carbon Steel | 24 Pieces/Box

P300441 (HX-441) PUNCH-LOK® by PT-Coupling | Hex Lok Nipple Hose Fitting | 1/2" Hose Barb x 1/2" Male NPT | Single Groove | Plated Carbon Steel | 24 Pieces/Box

Save $81.87 Save $81.87
$220.55
$220.55 - $220.55
$220.55
$138.68
$138.68 - $138.68
$138.68

PT Coupling
PUNCH-LOK® Hose Fitting | Hex Lok Nipple | Hose Barb x Male NPT | Plated Carbon Steel

PUNCH-LOK® single and double groove hose fittings of all types are designed and engineered for use with PUNCH-LOK® clamps to make connections which will withstand high pressure services.

Package Quantity: 24 Units

Specifications for Variant SKU: P300441 PT-Coupling
Brand: PUNCH-LOK
Series: Hex Lok-Nipples
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Male NPT
Material(s): Plated Carbon Steel
Overview:
  • PUNCH-LOK® single and double groove hose fittings of all types are designed and engineered for use with PUNCH-LOK® clamps to make connections which will withstand high pressure services.
  • The shape of the grooves eliminates damage to the inner wall of the hose. The PUNCH-LOK® clamp brings the hose wall into the grooves with even compression around the fittings.
  • Carbon steel steam hose fittings are available in sizes ranging from 1/2" to 1" and include tie wires.
  • Hex Steel Lok-nipples are cut from hexagon shaped cold rolled steel bar stock with NPT thread and tapered end for easy application.
Part
Name		 Item # Hose Size Standard Pipe Thread Length Number Of Barbs Quantity/Box
HX-221 P300221 1/4" 1/4" 2" 1 24
HX-331 P300331 3/8" 3/8" 2-1/2" 1 24
HX-441 P300441 1/2" 1/2" 2-1/2" 1 24
HX-442 P300442 1/2" 1/2" 3-1/2" 2 12
HX-641 P300641 3/4" 1/2" 3-1/8" 1 12
HX-661 P300661 3/4" 3/4" 3-1/8" 1 12
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
