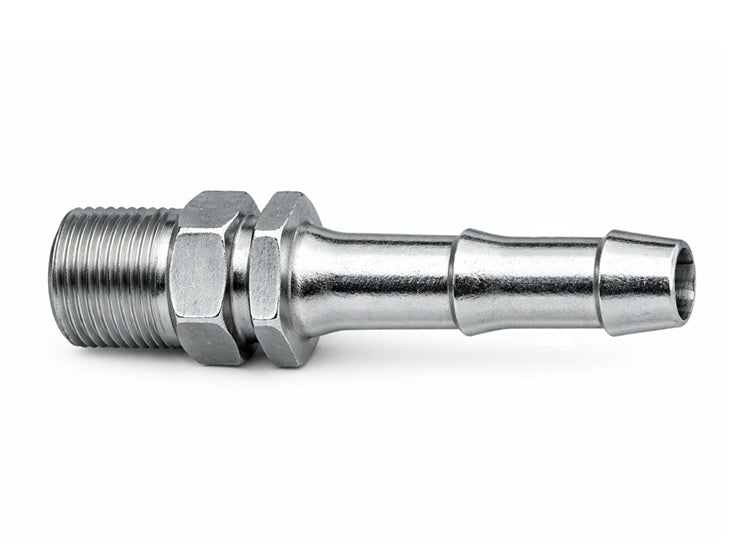

P300442 (HX-442) PUNCH-LOK® by PT-Coupling | Hex Lok Nipple Hose Fitting | 1/2" Hose Barb x 1/2" Male NPT | Double Groove | Plated Carbon Steel | 12 Pieces/Box

P300442 (HX-442) PUNCH-LOK® by PT-Coupling | Hex Lok Nipple Hose Fitting | 1/2" Hose Barb x 1/2" Male NPT | Double Groove | Plated Carbon Steel | 12 Pieces/Box

Save $59.56 Save $59.56
$160.45
$160.45 - $160.45
$160.45
$100.89
$100.89 - $100.89
$100.89

PT Coupling
PUNCH-LOK® Hose Fitting | Hex Lok Nipple | Hose Barb x Male NPT | Plated Carbon Steel

PUNCH-LOK® single and double groove hose fittings of all types are designed and engineered for use with PUNCH-LOK® clamps to make connections which will withstand high pressure services.

Package Quantity: 12 Units

Specifications for Variant SKU: P300442 PT-Coupling
Brand: PUNCH-LOK
Series: Hex Lok-Nipples
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Male NPT
Material(s): Plated Carbon Steel
Overview:
  • PUNCH-LOK® single and double groove hose fittings of all types are designed and engineered for use with PUNCH-LOK® clamps to make connections which will withstand high pressure services.
  • The shape of the grooves eliminates damage to the inner wall of the hose. The PUNCH-LOK® clamp brings the hose wall into the grooves with even compression around the fittings.
  • Carbon steel steam hose fittings are available in sizes ranging from 1/2" to 1" and include tie wires.
  • Hex Steel Lok-nipples are cut from hexagon shaped cold rolled steel bar stock with NPT thread and tapered end for easy application.
Part
Name		 Item # Hose Size Standard Pipe Thread Length Number Of Barbs Quantity/Box
HX-221 P300221 1/4" 1/4" 2" 1 24
HX-331 P300331 3/8" 3/8" 2-1/2" 1 24
HX-441 P300441 1/2" 1/2" 2-1/2" 1 24
HX-442 P300442 1/2" 1/2" 3-1/2" 2 12
HX-641 P300641 3/4" 1/2" 3-1/8" 1 12
HX-661 P300661 3/4" 3/4" 3-1/8" 1 12
