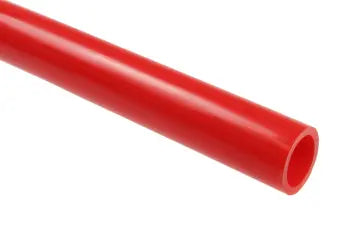

PT0815-100R by Coilhose | Tubing | 8mm OD x 5mm ID | 1.5 mm Wall Thickness | Red | Polyurethane | 100ft

PT0815-100R by Coilhose | Tubing | 8mm OD x 5mm ID | 1.5 mm Wall Thickness | Red | Polyurethane | 100ft

Save $10.22 Save $10.22
$92.00
$92.00 - $92.00
$92.00
$81.78
$81.78 - $81.78
$81.78
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 8.0mm OD x 5.0mm ID
Specifications for Variant SKU: PT0815-100R Coilhose
Hose Color(s): Red
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0815-100K PT0815-500K Black 8.0mm x 5.0mm 1.5mm 190 PSI
PT0815-100Y PT0815-500Y Yellow
PT0815-100W PT0815-500W White
PT0815-100TC PT0815-500TC Transparent Clear
PT0815-100TB PT0815-500TB Transparent Blue
PT0815-100R PT0815-500R Red
PT0815-100G PT0815-500G Green
PT0815-100B PT0815-500B Blue
