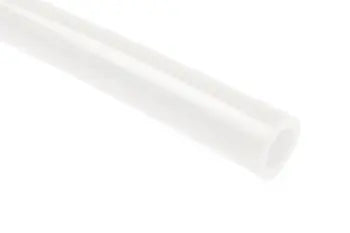

PT0815-500W by Coilhose | Tubing | 8mm OD x 5mm ID | 1.5 mm Wall Thickness | White | Polyurethane | 500ft

PT0815-500W by Coilhose | Tubing | 8mm OD x 5mm ID | 1.5 mm Wall Thickness | White | Polyurethane | 500ft

Save $49.26 Save $49.26
$443.33
$443.33 - $443.33
$443.33
$394.07
$394.07 - $394.07
$394.07
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 8.0mm OD x 5.0mm ID
Specifications for Variant SKU: PT0815-500W Coilhose
Hose Color(s): {\White\
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
100ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0815-100K PT0815-500K Black 8.0mm x 5.0mm 1.5mm 190 PSI
PT0815-100Y PT0815-500Y Yellow
PT0815-100W PT0815-500W White
PT0815-100TC PT0815-500TC Transparent Clear
PT0815-100TB PT0815-500TB Transparent Blue
PT0815-100R PT0815-500R Red
PT0815-100G PT0815-500G Green
PT0815-100B PT0815-500B Blue
