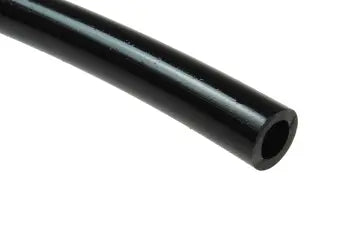

PT0909-200K by Coilhose | Tubing | 9/16" OD x 3/8" ID | .094" Wall Thickness | Black | Polyurethane | 200ft

PT0909-200K by Coilhose | Tubing | 9/16" OD x 3/8" ID | .094" Wall Thickness | Black | Polyurethane | 200ft

Save $44.99 Save $44.99
$404.87
$404.87 - $404.87
$404.87
$359.88
$359.88 - $359.88
$359.88
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 9/16" OD x 3/8" ID
Specifications for Variant SKU: PT0909-200K Coilhose
Hose Color(s): Black
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
50ft Length		 Part Number
200ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0909-50K PT0909-200K Black 9/16" x 3/8" 0.094" 155 PSI
PT0909-50B PT0909-200B Blue
PT0909-50G PT0909-200G Green
PT0909-50TB PT0909-200TB Transparent Blue
PT0909-50TC PT0909-200TC Transparent Clear
PT0909-50Y PT0909-200Y Yellow
- PT0909-200R Red
