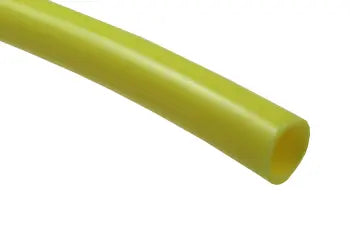

PT0909-50Y by Coilhose | Tubing | 9/16" OD x 3/8" ID | .094" Wall Thickness | Yellow | Polyurethane | 50ft

PT0909-50Y by Coilhose | Tubing | 9/16" OD x 3/8" ID | .094" Wall Thickness | Yellow | Polyurethane | 50ft

Save $11.62 Save $11.62
$104.58
$104.58 - $104.58
$104.58
$92.96
$92.96 - $92.96
$92.96
Coilhose Pneumatics - Plastic Tubing - Polyurethane Tubing - 9/16" OD x 3/8" ID
Specifications for Variant SKU: PT0909-50Y Coilhose
Hose Color(s): Yellow
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
50ft Length		 Part Number
200ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT0909-50K PT0909-200K Black 9/16" x 3/8" 0.094" 155 PSI
PT0909-50B PT0909-200B Blue
PT0909-50G PT0909-200G Green
PT0909-50TB PT0909-200TB Transparent Blue
PT0909-50TC PT0909-200TC Transparent Clear
PT0909-50Y PT0909-200Y Yellow
- PT0909-200R Red
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
