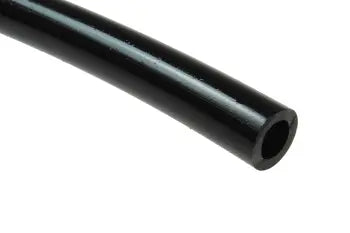

PT1017-500K by Coilhose | Tubing | 10mm OD x 6.5mm ID | 1.75 mm Wall Thickness | Black | Polyurethane | 500ft

PT1017-500K by Coilhose | Tubing | 10mm OD x 6.5mm ID | 1.75 mm Wall Thickness | Black | Polyurethane | 500ft

Save $63.20 Save $63.20
$568.82
$568.82 - $568.82
$568.82
$505.62
$505.62 - $505.62
$505.62
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 10.0mm OD x 6.5mm ID
Specifications for Variant SKU: PT1017-500K Coilhose
Hose Color(s): Black
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
50ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT1017-50K PT1017-500K Black 10.0mm x 6.5mm 1.75mm 170 PSI
PT1017-50Y PT1017-500Y Yellow
PT1017-50TC PT1017-500TC Transparent Clear
PT1017-50TB PT1017-500TB Transparent Blue
PT1017-50R PT1017-500R Red
PT1017-50G PT1017-500G Green
PT1017-50B PT1017-500B Blue
