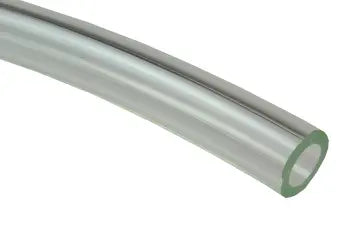

PT1017-50TC by Coilhose | Tubing | 10mm OD x 6.5mm ID | 1.75 mm Wall Thickness | Transparent Clear | Polyurethane | 50ft

PT1017-50TC by Coilhose | Tubing | 10mm OD x 6.5mm ID | 1.75 mm Wall Thickness | Transparent Clear | Polyurethane | 50ft

Save $6.51 Save $6.51
$58.55
$58.55 - $58.55
$58.55
$52.04
$52.04 - $52.04
$52.04
Coilhose Pneumatics - Plastic Tubing - Polyurethane Metric Tubing - 10.0mm OD x 6.5mm ID
Specifications for Variant SKU: PT1017-50TC Coilhose
Hose Color(s): Clear/Semi-Clear
Material(s): Polyurethane
Overview:
  • Coilhose Pneumatics offers Polyurethane Tubing made from an ether (polytetra-methylene glycol ether) based compound, which will not hydrolyze or degrade when exposed to water. Polyurethane has become a popular choice for tubing due to its extreme flexibility and resistance to kinking. In addition, it stands up very well to fuels and oils.
Features:

Temperature Range: -40° F to 165° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: 1/8" - 9/16" +/- .005"
3/4" +/- .007"		 Working Pressure: 3 to 1 Safety Factor
Compliance: NSF61, Meets UL94HB UV Stabilized: Yes
Material: 95A Polyurethane

Part Number
50ft Length		 Part Number
500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
PT1017-50K PT1017-500K Black 10.0mm x 6.5mm 1.75mm 170 PSI
PT1017-50Y PT1017-500Y Yellow
PT1017-50TC PT1017-500TC Transparent Clear
PT1017-50TB PT1017-500TB Transparent Blue
PT1017-50R PT1017-500R Red
PT1017-50G PT1017-500G Green
PT1017-50B PT1017-500B Blue
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
