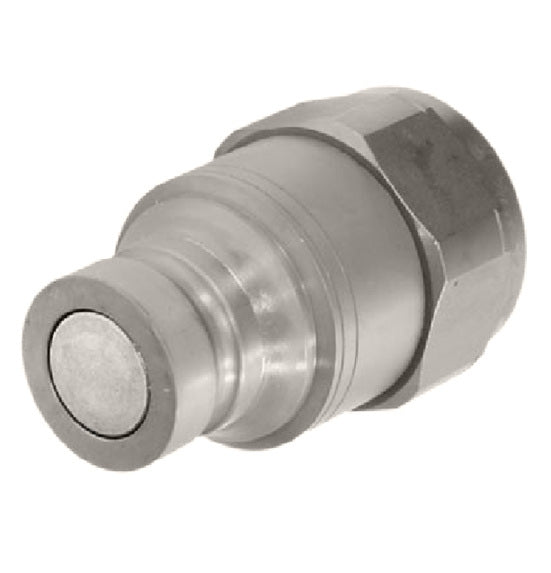

QC-FF12-M-12N by Couplamatic | Hydraulic Quick Coupler | FF Series | ISO 16028 Flat Face | 1/2" Body Size x 3/4-14 Female NPT | Plug | Zinc Nickel Plated

Save $3.61

$32.52

$32.52 - $32.52

$32.52

$28.91

$28.91 - $28.91

$28.91

Couplamatic Inc
Hydraulic Quick Couplers - FF Series - ISO 16028 Flat Face Couplers

Quantity

Specifications for Variant SKU: QC-FF12-M-12N Couplamatic
Series:	FF Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female ISO-16028 Flush Face QD Interchange, 3/4in Male NPT

Features:
FF Series Flat Face Couplers prevent fluid loss during disconnection and allow minimal inclusion of contaminants during connection. Couplers have nitrile seals, and are zinc nickel plated for higher corrosion resistance. A safety locking sleeve prevents accidental disconnection. Zinc Nickel Plating.
Temperature:
-40°F (-40°C) to 223°F (106°C).
Applications:
Industrial Agriculture Mining Leak Free Environments High Pressure Pulse Hammer Circuits


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Female Burst	Male Burst	"A" Length	"B" Length	"C" Length
QC-FF10-F-06N	3/8"	10	Female	3/8-18 NPT	5075 PSI	21750 PSI	15950 PSI	15225 PSI	4.5"	2.7"	-
QC-FF10-M-06N	3/8"	10	Male	3/8-18 NPT	5075 PSI	21750 PSI	15950 PSI	15225 PSI	4.5"	-	2.4"

QC-FF10-F-06S	3/8"	10	Female	9/16x18 SAE	5075 PSI	21750 PSI	15950 PSI	15225 PSI	4.5"	2.7"	-
QC-FF10-M-06S	3/8"	10	Male	9/16x18 SAE	5075 PSI	21750 PSI	15950 PSI	15225 PSI	4.5"	-	2.4"

QC-FF12-F-08N	1/2"	12	Female	1/2-14 NPT	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	3.3"	-
QC-FF12-M-08N	1/2"	12	Male	1/2-14 NPT	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	-	2.8"

QC-FF12-F-12N	1/2"	12	Female	3/4-14 NPT	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	3.3"	-
QC-FF12-M-12N	1/2"	12	Male	3/4-14 NPT	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	-	2.8"

QC-FF12-F-08S	1/2"	12	Female	3/4x16 SAE	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	3.3"	-
QC-FF12-M-08S	1/2"	12	Male	3/4x16 SAE	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	-	2.8"

QC-FF12-F-10S	1/2"	12	Female	7/8x14 SAE	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	3.3"	-
QC-FF12-M-10S	1/2"	12	Male	7/8x14 SAE	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	-	2.8"

QC-FF12-F-12S	1/2"	12	Female	1-1/16x12 SAE	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	3.3"	-
QC-FF12-M-12S	1/2"	12	Male	1-1/16x12 SAE	5075 PSI	17400 PSI	15225 PSI	14500 PSI	5.4"	-	2.8"

QC-FF19-F-12N	3/4"	19	Female	3/4-14 NPT	5075 PSI	21025 PSI	15225 PSI	15225 PSI	6.4"	3.9"	-
QC-FF19-M-12N	3/4"	19	Male	3/4-14 NPT	5075 PSI	21025 PSI	15225 PSI	15225 PSI	6.4"	-	3.3"

QC-FF19-F-12S	3/4"	19	Female	1-1/16x12 SAE	5075 PSI	21025 PSI	15225 PSI	15225 PSI	6.4"	3.9"	-
QC-FF19-M-12S	3/4"	19	Male	1-1/16x12 SAE	5075 PSI	21025 PSI	15225 PSI	15225 PSI	6.4"	-	3.3"

QC-FF25-F-16N	1"	25	Female	1-11-1/2 NPT	3770 PSI	11600 PSI	11600 PSI	11600 PSI	6.8"	4.2"	-
QC-FF25-M-16N	1"	25	Male	1-11-1/2 NPT	3770 PSI	11600 PSI	11600 PSI	11600 PSI	6.8"	-	3.6"

QC-FF25-F-16S	1"	25	Female	1-5/16x12 SAE	3770 PSI	11600 PSI	11600 PSI	11600 PSI	6.8"	4.2"	-
QC-FF25-M-16S	1"	25	Male	1-5/16x12 SAE	3770 PSI	11600 PSI	11600 PSI	11600 PSI	6.8"	-	3.6"
