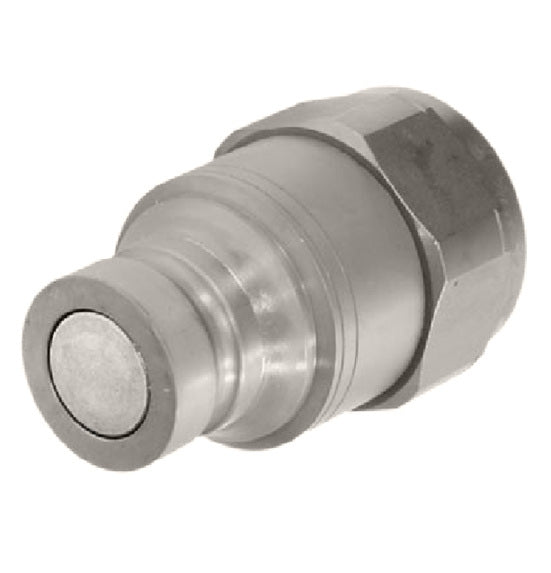

QC-FF10-M-06S by Couplamatic | Hydraulic Quick Coupler | FF Series | ISO 16028 Flat Face | 3/8" Body Size x 9/16x18 Female SAE | Plug | Zinc Nickel Plated

QC-FF10-M-06S by Couplamatic | Hydraulic Quick Coupler | FF Series | ISO 16028 Flat Face | 3/8" Body Size x 9/16x18 Female SAE | Plug | Zinc Nickel Plated

Save $2.27 Save $2.27
$20.41
$20.41 - $20.41
$20.41
$18.14
$18.14 - $18.14
$18.14

Couplamatic Inc
Hydraulic Quick Couplers - FF Series - ISO 16028 Flat Face Couplers
Specifications for Variant SKU: QC-FF10-M-06S Couplamatic
Series: FF Series
Shape (Orientation): Straight
Features:
  • FF Series Flat Face Couplers prevent fluid loss during disconnection and allow minimal inclusion of contaminants during connection.
  • Couplers have nitrile seals, and are zinc nickel plated for higher corrosion resistance.
  • A safety locking sleeve prevents accidental disconnection.
  • Zinc Nickel Plating.
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mining
  • Leak Free Environments
  • High Pressure Pulse
  • Hammer Circuits
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A"
Length		 "B"
Length		 "C"
Length
QC-FF10-F-06N 3/8" 10 Female 3/8-18 NPT 5075 PSI 21750 PSI 15950 PSI 15225 PSI 4.5" 2.7" -
QC-FF10-M-06N 3/8" 10 Male 3/8-18 NPT 5075 PSI 21750 PSI 15950 PSI 15225 PSI 4.5" - 2.4"

QC-FF10-F-06S 3/8" 10 Female 9/16x18 SAE 5075 PSI 21750 PSI 15950 PSI 15225 PSI 4.5" 2.7" -
QC-FF10-M-06S 3/8" 10 Male 9/16x18 SAE 5075 PSI 21750 PSI 15950 PSI 15225 PSI 4.5" - 2.4"

QC-FF12-F-08N 1/2" 12 Female 1/2-14 NPT 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" 3.3" -
QC-FF12-M-08N 1/2" 12 Male 1/2-14 NPT 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" - 2.8"

QC-FF12-F-12N 1/2" 12 Female 3/4-14 NPT 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" 3.3" -
QC-FF12-M-12N 1/2" 12 Male 3/4-14 NPT 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" - 2.8"

QC-FF12-F-08S 1/2" 12 Female 3/4x16 SAE 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" 3.3" -
QC-FF12-M-08S 1/2" 12 Male 3/4x16 SAE 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" - 2.8"

QC-FF12-F-10S 1/2" 12 Female 7/8x14 SAE 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" 3.3" -
QC-FF12-M-10S 1/2" 12 Male 7/8x14 SAE 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" - 2.8"

QC-FF12-F-12S 1/2" 12 Female 1-1/16x12 SAE 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" 3.3" -
QC-FF12-M-12S 1/2" 12 Male 1-1/16x12 SAE 5075 PSI 17400 PSI 15225 PSI 14500 PSI 5.4" - 2.8"

QC-FF19-F-12N 3/4" 19 Female 3/4-14 NPT 5075 PSI 21025 PSI 15225 PSI 15225 PSI 6.4" 3.9" -
QC-FF19-M-12N 3/4" 19 Male 3/4-14 NPT 5075 PSI 21025 PSI 15225 PSI 15225 PSI 6.4" - 3.3"

QC-FF19-F-12S 3/4" 19 Female 1-1/16x12 SAE 5075 PSI 21025 PSI 15225 PSI 15225 PSI 6.4" 3.9" -
QC-FF19-M-12S 3/4" 19 Male 1-1/16x12 SAE 5075 PSI 21025 PSI 15225 PSI 15225 PSI 6.4" - 3.3"

QC-FF25-F-16N 1" 25 Female 1-11-1/2 NPT 3770 PSI 11600 PSI 11600 PSI 11600 PSI 6.8" 4.2" -
QC-FF25-M-16N 1" 25 Male 1-11-1/2 NPT 3770 PSI 11600 PSI 11600 PSI 11600 PSI 6.8" - 3.6"

QC-FF25-F-16S 1" 25 Female 1-5/16x12 SAE 3770 PSI 11600 PSI 11600 PSI 11600 PSI 6.8" 4.2" -
QC-FF25-M-16S 1" 25 Male 1-5/16x12 SAE 3770 PSI 11600 PSI 11600 PSI 11600 PSI 6.8" - 3.6"
