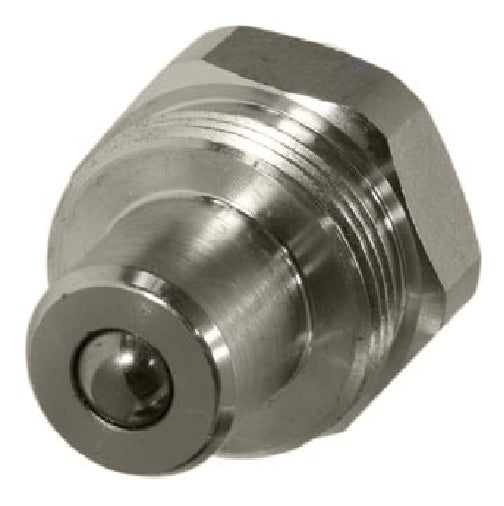

QC-SCB06-M-04N by Couplamatic | Hydraulic Quick Coupler | SCB Screw to Connect Ball | 1/4" Body Size x 1/4-18 Female NPT | Plug | Zinc Plated

Save $1.37 Save $1.37
Original price $12.29
Original price $12.29 - Original price $12.29
Original price $12.29
Current price $10.92
$10.92 - $10.92
Current price $10.92

Couplamatic Inc
Hydraulic Quick Couplers - SCB Series Hydraulic Quick Couplers


Specifications for Variant SKU: QC-SCB06-M-04N Couplamatic
Series: SCB Series
Shape (Orientation): Straight
Features:
  • SCB Series Couplers are made to the ISO 14540 Standard.
  • Designed for high pressure applications and have nitrile and polyurethane seals.
  • SCB Series can be connected with low residual pressure and the screw connect design eliminates brinelling.
  • Zinc Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • High Pressure Applications
  • Industrial
  • Torque Wrenches
  • Agriculture
  • Hydraulic Jacks
Part Number Body
Size
Body
Size
(ISO)
Coupler
Gender
Thread
Size
Working
Pressure
Coupled
Burst
Female
Burst
Male
Burst
"A" Length "B" Length "C" Length
QC-SCB06-F-04N 1/4" 06 Female 1/4-18 NPT 10440 PSI 31320 PSI 20300 PSI 20880 PSI 2.9" 2.4" -
QC-SCB06-M-04N 1/4" 06 Male 1/4-18 NPT 10440 PSI 31320 PSI 20300 PSI 20880 PSI 2.9" - 1.3"

QC-SCB10-F-06N 3/8" 10 Female 3/8-18 NPT 10440 PSI 31320 PSI 20300 PSI 20880 PSI 3.3" 2.9" -
QC-SCB10-M-06N 3/8" 10 Male 3/8-18 NPT 10440 PSI 31320 PSI 20300 PSI 20880 PSI 3.3" - 1.4"
