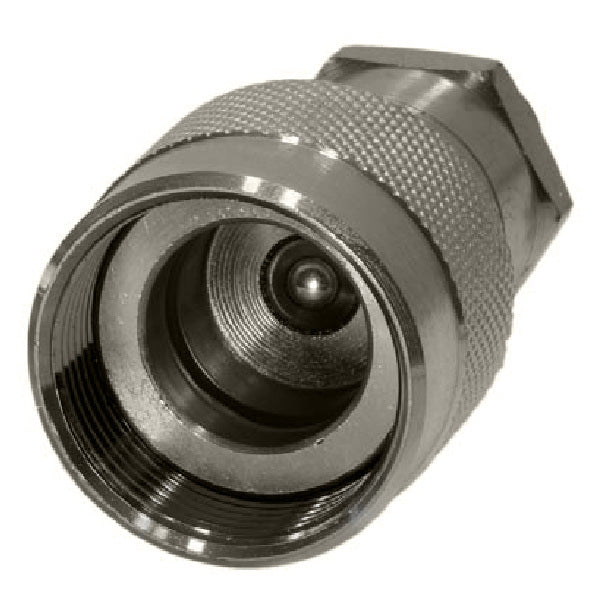

QC-SCB10-F-06N by Couplamatic | Hydraulic Quick Coupler | SCB Screw to Connect Ball | 3/8" Body Size x 3/8-18 Female NPT | Socket | Zinc Plated

Save $3.00

$26.96

$26.96 - $26.96

$26.96

$23.96

$23.96 - $23.96

$23.96

Couplamatic Inc
Hydraulic Quick Couplers - SCB Series Hydraulic Quick Couplers

Quantity

Specifications for Variant SKU: QC-SCB10-F-06N Couplamatic
Series:	SCB Series
Shape (Orientation):	Straight

Features:
SCB Series Couplers are made to the ISO 14540 Standard. Designed for high pressure applications and have nitrile and polyurethane seals. SCB Series can be connected with low residual pressure and the screw connect design eliminates brinelling. Zinc Plating
Temperature:
-40°F (-40°C) to 223°F (106°C).
Applications:
High Pressure Applications Industrial Torque Wrenches Agriculture Hydraulic Jacks


Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Female Burst	Male Burst	"A" Length	"B" Length	"C" Length
QC-SCB06-F-04N	1/4"	06	Female	1/4-18 NPT	10440 PSI	31320 PSI	20300 PSI	20880 PSI	2.9"	2.4"	-
QC-SCB06-M-04N	1/4"	06	Male	1/4-18 NPT	10440 PSI	31320 PSI	20300 PSI	20880 PSI	2.9"	-	1.3"

QC-SCB10-F-06N	3/8"	10	Female	3/8-18 NPT	10440 PSI	31320 PSI	20300 PSI	20880 PSI	3.3"	2.9"	-
QC-SCB10-M-06N	3/8"	10	Male	3/8-18 NPT	10440 PSI	31320 PSI	20300 PSI	20880 PSI	3.3"	-	1.4"
