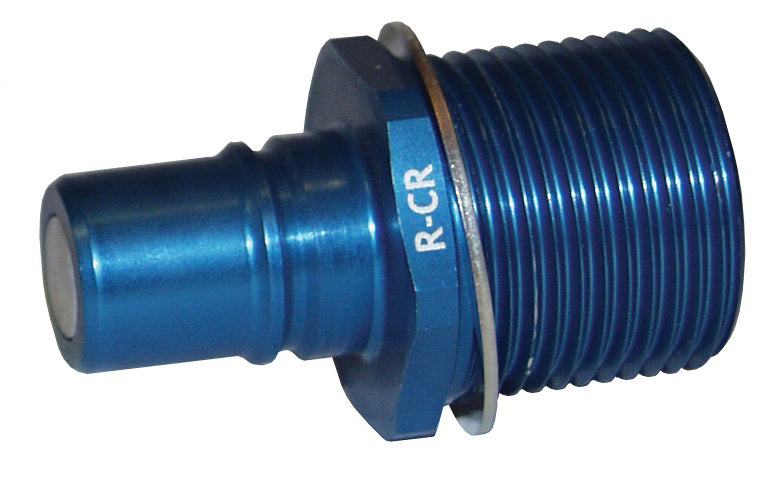

R-CR by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Receiver | 1.187-12 UN-2A Male NPT x 0.875-14 UN-2B Female NPT | Teal/Blue | Anodized Aluminum

Save $13.83

$124.47

$124.47 - $124.47

$124.47

$110.64

$110.64 - $110.64

$110.64

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Receiver

Fully compatible and interchangeable with industry standards.

Quantity

Specifications for Variant SKU: R-CR Dixon
Brand:	FloMAX
Series:	R-CR Series
Shape (Orientation):	Straight
Material(s):	Anodized Aluminum

Features:
Bright Teal. Standard roll-pin locking mechanism. Ergonomically engineered pullback.
Construction:
All-metal construction. Anodized aircraft grade aluminum non-wear components.

Coolant Fluid Nozzles
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
R-CN	Coolant Fluid Nozzle	1/2" Female NPT	-	R11	N200R
R-CN-P	Coolant Fluid Nozzle with Plug	1/2" Female NPT	-	-	N200RP
R-CN-PLUG	Coolant Fluid Nozzle Plug	-	-	R1107	P200R

Coolant Fluid Receivers
Part Number	Description	Male Thread Size	Female Thread Size	Cross Over Part Numbers
Part Number	Description	Male Thread Size	Female Thread Size	Caterpillar®	Wiggins	FastFill
R-CR	Coolant Fluid Receiver	1.187-12 UN-2A	.875-14 UN-2B	-	R12	R200R
R-CR-C	Coolant Fluid Receiver with Cap	1.187-12 UN-2A	.875-14 UN-2B	-	-	R200RC
R-CR-CAP	Coolant Fluid Receiver Cap	-	-	-	R1205	C200R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
