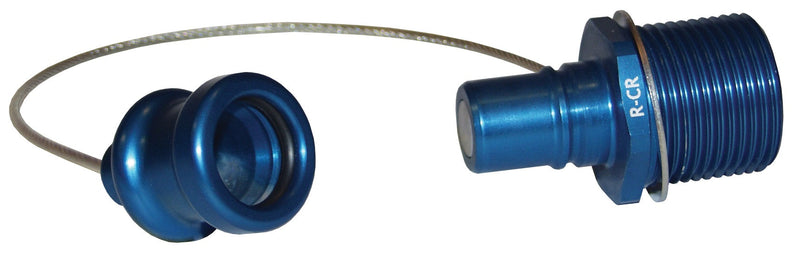

R-CR-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Receiver with Cap | 1.187-12 UN-2A Male NPT x 0.875-14 UN-2B Female NPT | Teal/Blue | Anodized Aluminum

R-CR-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Receiver with Cap | 1.187-12 UN-2A Male NPT x 0.875-14 UN-2B Female NPT | Teal/Blue | Anodized Aluminum

Save $100.37 Save $100.37
$250.93
$250.93 - $250.93
$250.93
$150.56
$150.56 - $150.56
$150.56

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Coolant Fluid Receiver

Fully compatible and interchangeable with industry standards.
Specifications for Variant SKU: R-CR-C Dixon
Brand: FloMAX
Series: R-CR Series
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Features:
  • Bright Teal.
  • Standard roll-pin locking mechanism.
  • Ergonomically engineered pullback.
Construction:
  • All-metal construction.
  • Anodized aircraft grade aluminum non-wear components.
Coolant Fluid Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-CN Coolant Fluid Nozzle 1/2" Female NPT - R11 N200R
R-CN-P Coolant Fluid Nozzle with Plug 1/2" Female NPT - - N200RP
R-CN-PLUG Coolant Fluid Nozzle Plug - - R1107 P200R
Coolant Fluid Receivers
Part Number Description Male Thread Size Female Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-CR Coolant Fluid Receiver 1.187-12 UN-2A .875-14 UN-2B - R12 R200R
R-CR-C Coolant Fluid Receiver with Cap 1.187-12 UN-2A .875-14 UN-2B - - R200RC
R-CR-CAP Coolant Fluid Receiver Cap - - - R1205 C200R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
