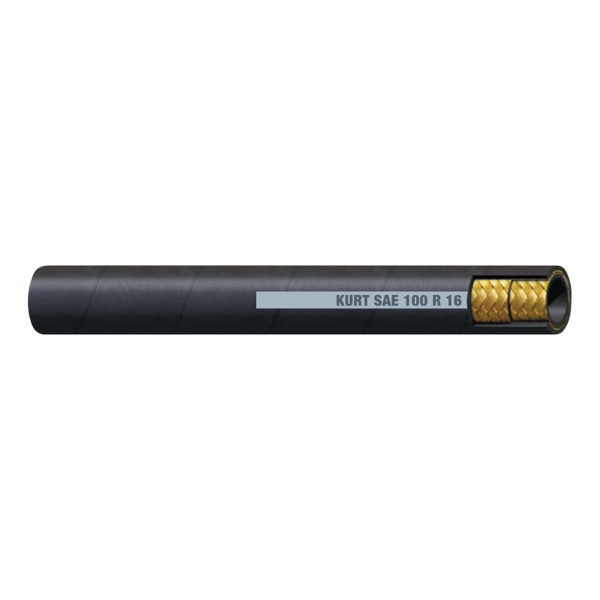

R16S-08 by Kurt Hydraulics | R16S Series | 0.50in ID x 0.86in ID | 3980 MAWP | 2-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R16-S, Applicable MSHA Standards | Black | 320ft Reel

Save $108.80

$979.20

$979.20 - $979.20

$979.20

$870.40

$870.40 - $870.40

$870.40

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 320 Feet

Quantity

Specifications for Variant SKU: R16S-08 Kurt \| 320 \|
Series:	R16S Series
Hose Color(s):	Black
Dash Size:	-08
Internal Diameter:	0.50in
Outer Diameter:	0.86in
Tubing Construction:	Nitrile
Cover Construction:	Neoprene
Applicable Specs & Approvals:	SAE 100R16-S, Applicable MSHA Standards

Recommended for: High pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)	Weight (Lb/Ft)
R16S-04	1/4	0.54	5,750	23,000	2	0.17
R16S-06	3/8	0.67	4,750	19,000	2.5	0.24
R16S-08	1/2	0.81	4,000	16,000	3.5	0.31
R16S-10	5/8	0.94	3,500	14,000	4	0.42
R16S-12	3/4	1.09	3,000	12,000	4.5	0.52
R16S-16	1	1.39	2,250	9,000	6	0.78

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
