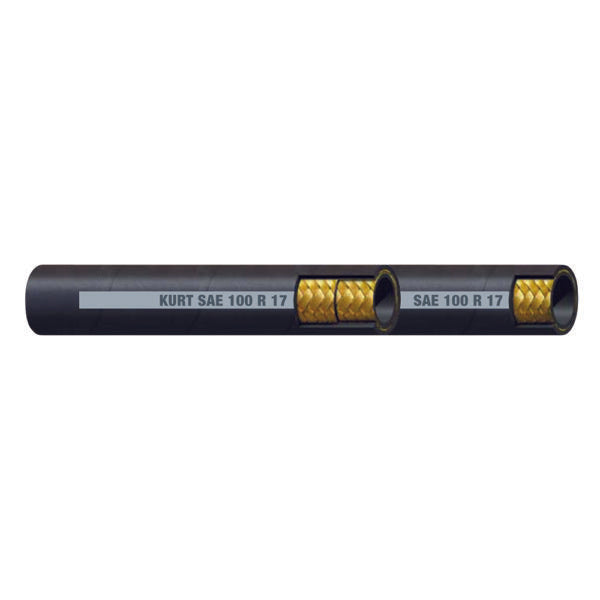

R17-16-Reel by Kurt Hydraulics | R17 Series | 1in ID x 1.43in ID | 3000 MAWP | 2-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R17, Applicable MSHA Standards | Black | 200ft Reel

Save $181.33

$1,632.00

$1,632.00 - $1,632.00

$1,632.00

$1,450.67

$1,450.67 - $1,450.67

$1,450.67

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 200 Feet

Quantity

Specifications for Variant SKU: R17-16-Reel Kurt \| 200 \|
Series:	R17 Series
Hose Color(s):	Black
Dash Size:	-16
Internal Diameter:	1in
Outer Diameter:	1.43in
Tubing Construction:	Nitrile
Cover Construction:	Neoprene
Applicable Specs & Approvals:	SAE 100R17, Applicable MSHA Standards

Recommended for: High pressure hydraulic oil lines, SAE J1942 U.S.C.G Accepted Hydraulic Only
Tube: Oil resistant synthetic rubber
Reinforcement: Up to 1/2" one, from 5/8" two high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)	Weight (Lb/Ft)
R17-04-Reel	1/4	0.49	3,000	12,000	2	0.11
R17-06-Reel	3/8	0.63	3,000	12,000	2.5	0.18
R17-08-Reel	1/2	0.8	3,000	12,000	3.5	0.26
R17-10-Reel	5/8	0.94	3,000	12,000	4	0.32
R17-12-Reel	3/4	1.1	3,000	12,000	4.5	0.44
R17-16-Reel	1	1.43	3,000	12,000	6	0.85

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
