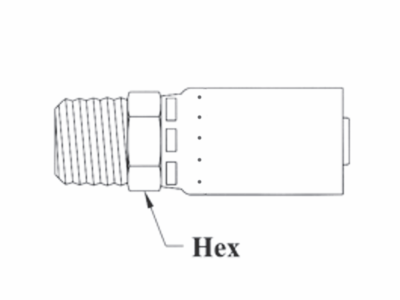

R501-16X16 Couplamatic R5 Series Coupling - NPTF - Male Solid - 7/8" Hose ID - 1-11-1/2 Thread Size

R501-16X16 by Couplamatic | R5 Series Coupling | 7/8" Hose ID x 1-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 5

Save $6.18 Save $6.18
$55.58
$55.58 - $55.58
$55.58
$49.40
$49.40 - $49.40
$49.40

Couplamatic Systems Inc.
R5 Series - NPTF - Male Solid

Package Quantity: 5 EA

Specifications for Variant SKU: R501-16X16 Couplamatic | 5 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 7/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 069E
R501-4X2 3/16" 1/8" 1/8-27 9/16" 06904E-102
R501-4X4 3/16" 1/4" 1/4-18 9/16" 06904E-104
R501-5X4 1/4" 1/4" 1/4-18 9/16" 06905E-104
R501-6X4 5/16" 1/4" 1/4-18 11/16" 06906E-104
R501-6X6 5/16" 3/8" 3/8-18 11/16" 06906E-106
R501-8X6 13/32" 3/8" 3/8-18 3/4" 06908E-106
R501-8X8 13/32" 1/2" 1/2-14 7/8" 06908E-108
R501-10X8 1/2" 1/2" 1/2-14 7/8" 06910E-108
R501-12X12 5/8" 3/4" 3/4-14 1-1/16" 06912E-112
R501-16X16 7/8" 1" 1-11-1/2 1-3/8" 06916E-116
R501-20X20 1-1/8" 1-1/4" 1-1/4-11-1/2 1-11/16" 06920E-120
R501-24x24 1-3/8" 1-1/2" 1-1/2-11-1/2 2" 06924E-124
R501-32x32 1-13/16" 2" 2-11-1/2 2-1/2" 06932E-132
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
