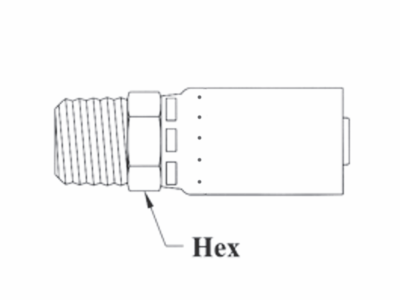

R501-8X8 Couplamatic R5 Series Coupling - NPTF - Male Solid - 13/32" Hose ID - 1/2-14 Thread Size

R501-8X8 by Couplamatic | R5 Series Coupling | 13/32" Hose ID x 1/2-14 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $5.33 Save $5.33
$47.98
$47.98 - $47.98
$47.98
$42.65
$42.65 - $42.65
$42.65

Couplamatic Systems Inc.
R5 Series - NPTF - Male Solid

Package Quantity: 10 EA

Specifications for Variant SKU: R501-8X8 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male NPTF, 13/32in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Weatherhead 069E
R501-4X2 3/16" 1/8" 1/8-27 9/16" 06904E-102
R501-4X4 3/16" 1/4" 1/4-18 9/16" 06904E-104
R501-5X4 1/4" 1/4" 1/4-18 9/16" 06905E-104
R501-6X4 5/16" 1/4" 1/4-18 11/16" 06906E-104
R501-6X6 5/16" 3/8" 3/8-18 11/16" 06906E-106
R501-8X6 13/32" 3/8" 3/8-18 3/4" 06908E-106
R501-8X8 13/32" 1/2" 1/2-14 7/8" 06908E-108
R501-10X8 1/2" 1/2" 1/2-14 7/8" 06910E-108
R501-12X12 5/8" 3/4" 3/4-14 1-1/16" 06912E-112
R501-16X16 7/8" 1" 1-11-1/2 1-3/8" 06916E-116
R501-20X20 1-1/8" 1-1/4" 1-1/4-11-1/2 1-11/16" 06920E-120
R501-24x24 1-3/8" 1-1/2" 1-1/2-11-1/2 2" 06924E-124
R501-32x32 1-13/16" 2" 2-11-1/2 2-1/2" 06932E-132
