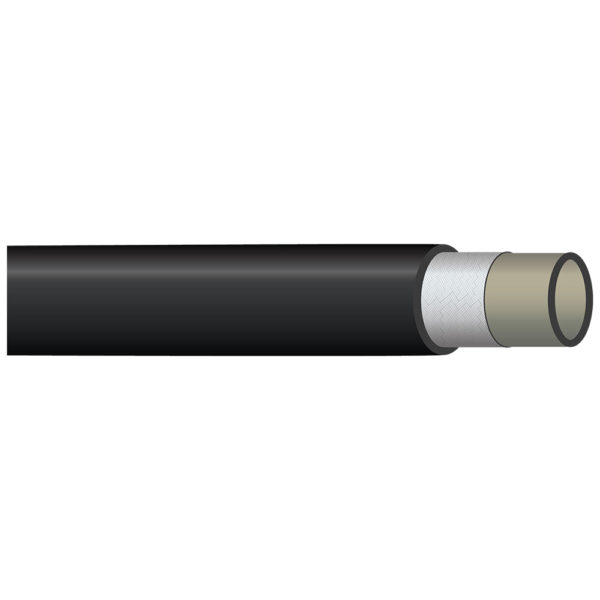

R7-04 by Kurt Hydraulics | R7 Series | 0.25in ID x 0.485in ID | 3000 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Black | 400ft Reel

Save $66.67

$600.00

$600.00 - $600.00

$600.00

$533.33

$533.33 - $533.33

$533.33

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 400 Feet

Quantity

Specifications for Variant SKU: R7-04 Kurt \| 400 \|
Series:	R7 Series
Hose Color(s):	Black
Dash Size:	-04
Internal Diameter:	0.25in
Outer Diameter:	0.485in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7

Recommended for: Medium pressure hydraulic oil lines
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R7-02	1/8	0.31	3,000	12,000	1.0
R7-03	3/16	0.41	3,000	12,000	2.0
R7-04	1/4	0.49	3,000	12,000	2.5
R7-05	5/16	0.59	2,500	10,000	3.0
R7-06	3/8	0.68	2,250	9,000	4.0
R7-08	1/2	0.81	2,000	8,000	5.5
R7-12	3/4	1.06	1,250	5,000	7.0
R7-16	1	1.38	1,000	4,000	12.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
