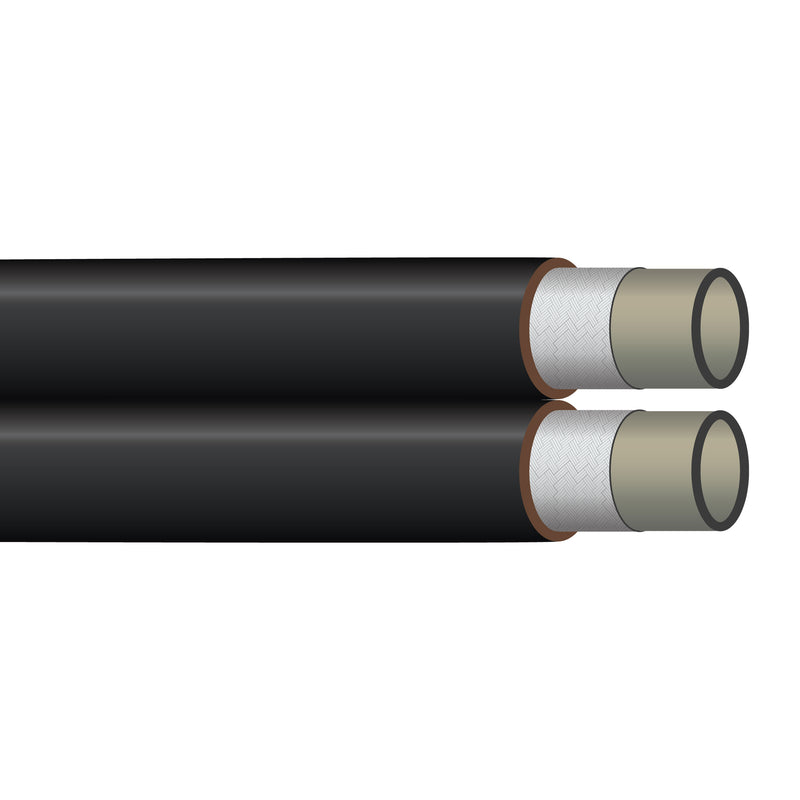

R7-05-TW by Kurt Hydraulics | R7 Series | 0.3125in ID x 0.585in ID | 2500 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Black | 250ft Reel

Save $622.22

$1,555.55

$1,555.55 - $1,555.55

$1,555.55

$933.33

$933.33 - $933.33

$933.33

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Specifications for Variant SKU: R7-05-TW Kurt \| 250 \|
Series:	R7 Series
Hose Color(s):	Black
Dash Size:	-05
Internal Diameter:	0.3125in
Outer Diameter:	0.585in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7

Recommended for: Medium pressure hydraulic oil lines twin-line applications
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R7-03-TW	3/16	0.41	3,000	12,000	2.0
R7-04-TW	1/4	0.49	3,000	12,000	2.5
R7-05-TW	5/16	0.59	2,500	10,000	3.0
R7-06-TW	3/8	0.65	2,250	9,000	3.5
R7-08-TW	1/2	0.81	2,000	8,000	5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
