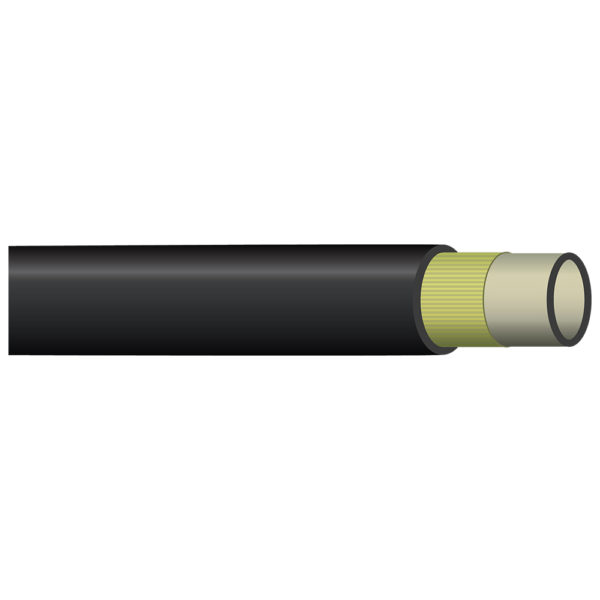

R8-04 by Kurt Hydraulics | R8 Series | 0.25in ID x 0.485in ID | 5000 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Black | 400ft Reel

R8-04 by Kurt Hydraulics | R8 Series | 0.25in ID x 0.485in ID | 5000 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Black | 400ft Reel

Save $130.67 Save $130.67
$1,176.00
$1,176.00 - $1,176.00
$1,176.00
$1,045.33
$1,045.33 - $1,045.33
$1,045.33

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 400 Feet

Specifications for Variant SKU: R8-04 Kurt | 400 |
Series: R8 Series
Hose Color(s): Black
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.485in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R8

Recommended for: High pressure hydraulic oil lines
Tube: Thermoplastic
Reinforcement: Two synthetic fiber braids
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number Hose I.D. (in.) Hose O.D. (in.) Rated W.P. (psi) Min. Burst (psi) Min. Bend (in.)
R8-03 3/16 0.41 5,000 20,000 2.0
R8-04 1/4 0.49 5,000 20,000 2.5
R8-06 3/8 0.65 4,000 16,000 3.5
R8-08 1/2 0.76 3,500 14,000 5.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
