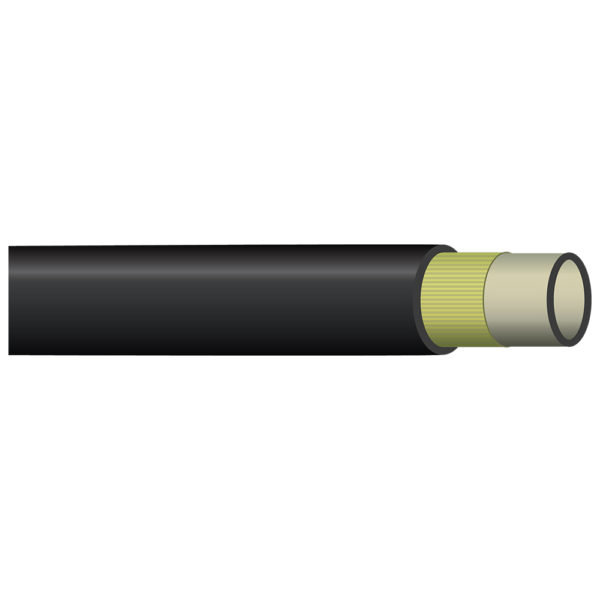

R8-05 by Kurt Hydraulics | R8 Series | 0.3125in ID x 0.585in ID | 4200 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Black | 300ft Reel

Save $110.00

$990.00

$990.00 - $990.00

$990.00

$880.00

$880.00 - $880.00

$880.00

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 300 Feet

Quantity

Specifications for Variant SKU: R8-05 Kurt \| 300 \|
Series:	R8 Series
Hose Color(s):	Black
Dash Size:	-05
Internal Diameter:	0.3125in
Outer Diameter:	0.585in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8

Recommended for: High pressure hydraulic oil lines
Tube: Thermoplastic
Reinforcement: Two synthetic fiber braids
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R8-03	3/16	0.41	5,000	20,000	2.0
R8-04	1/4	0.49	5,000	20,000	2.5
R8-06	3/8	0.65	4,000	16,000	3.5
R8-08	1/2	0.76	3,500	14,000	5.5
