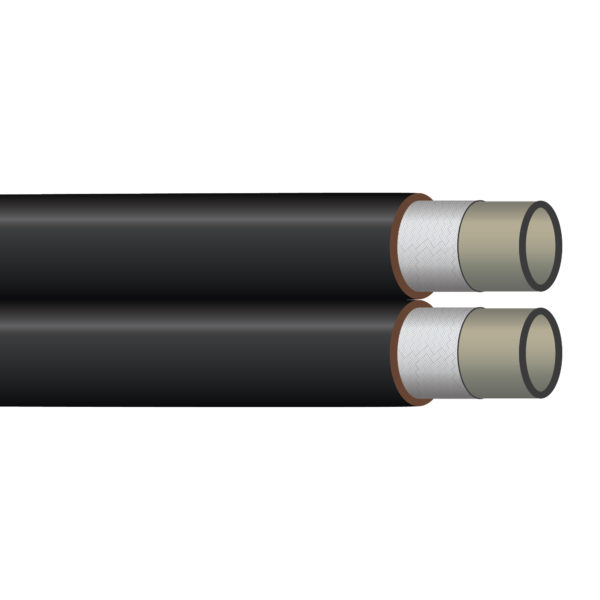

R8-08-TW by Kurt Hydraulics | R8 Series | 0.50in ID x 0.76in ID | 3500 MAWP | Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R8 | Black | 250ft Reel

Save $312.08

$2,808.75

$2,808.75 - $2,808.75

$2,808.75

$2,496.67

$2,496.67 - $2,496.67

$2,496.67

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Quantity

Specifications for Variant SKU: R8-08-TW Kurt \| 250 \|
Series:	R8 Series
Hose Color(s):	Black
Dash Size:	-08
Internal Diameter:	0.50in
Outer Diameter:	0.76in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R8

Recommended for: High pressure hydraulic oil lines for twin line applications
Tube: Thermoplastic
Reinforcement: Two synthetic fiber braids
Cover: Abrasion, ozone and weather resistant black urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R8-04-TW	1/4	0.49	5,000	20,000	2.5
R8-06-TW	3/8	0.65	4,000	16,000	3.5
R8-08-TW	1/2	0.76	3,500	14,000	5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
