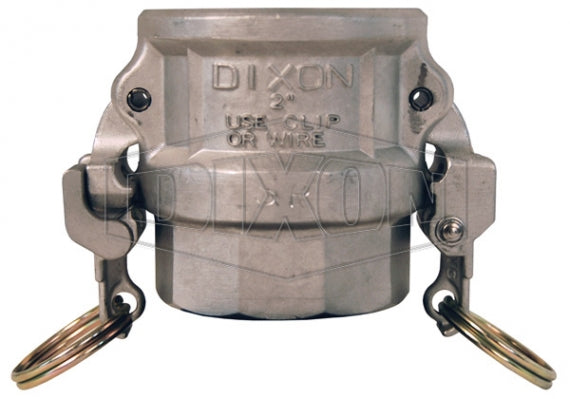

RDWSP200EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler for Welding | 2" Coupler Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

RDWSP200EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler for Welding | 2" Coupler Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

Save $11.45 Save $11.45
$161.10
$161.10 - $161.10
$161.10
$149.65
$149.65 - $149.65
$149.65

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler for Welding | Coupler Socket Weld x Schedule 40 Pipe

Designed for use with liquids.
Specifications for Variant SKU: RDWSP200EZ Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Ends Configuration: 2in Female Cam & Groove, 2in Weld End
Material(s): 316 Stainless Steel
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Final weld preparation, as with all weld fittings, is the responsibility of the welder.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
316 Stainless Steel
Part Number		 Size Bore Max. Operating Pressure
RDWSP075EZ 3/4" 1.065" 250 PSI
RDWSP100EZ 1" 1.330" 250 PSI
RDWSP150EZ 1-1/2" 1.915" 250 PSI
RDWSP200EZ 2" 2.390" 250 PSI
RDWSP300EZ 3" 3.530" 125 PSI
RDWSP400EZ 4" 4.530" 100 PSI
RDWSP600EZ 6" 6.655" 75 PSI
