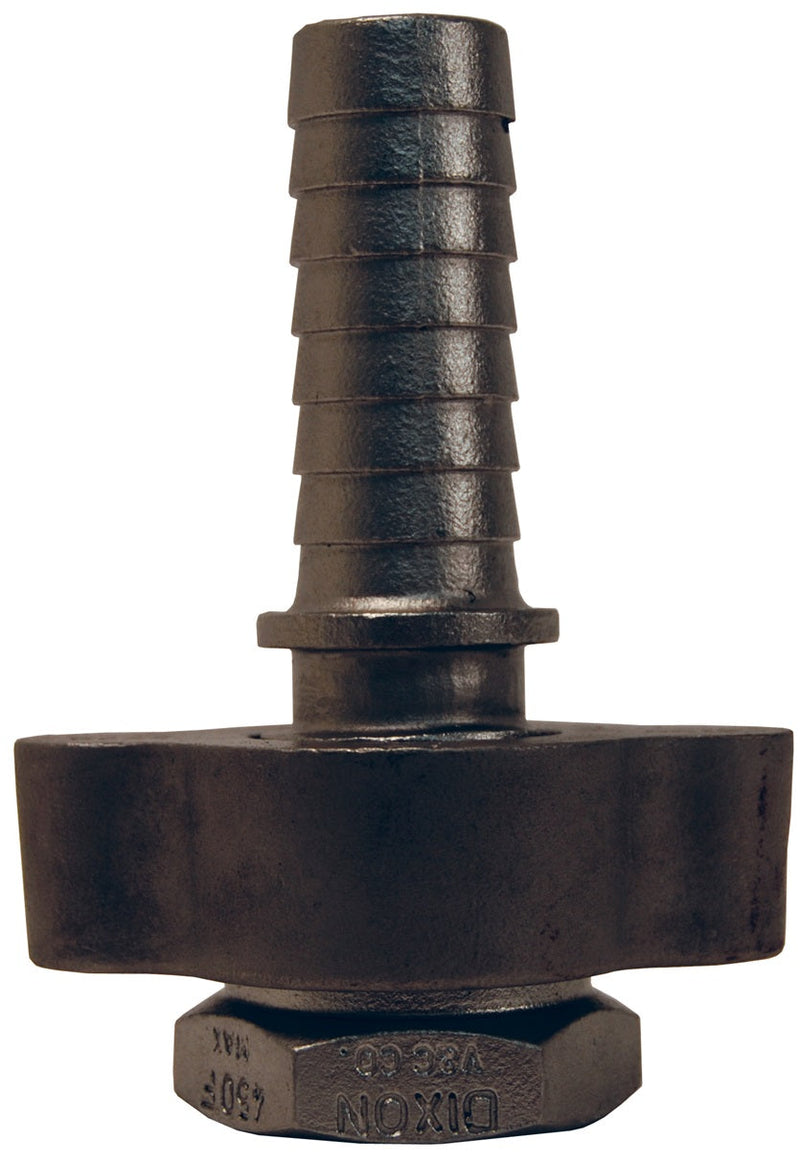

RWF81 by Dixon Valve | Boss® Washer Seal | Coupling with Female Spud | 2" Female NPT x Hose Shank | 316 Stainless Steel

$298.27

Dixon Valve
Boss® | Washer Seal Coupling with Female Spud

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: RWF81 Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Klingersil C-4401
Features:
  • Easy to seal.
  • A Klingersil® C-4401 washer is inserted between the stem and spud.
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. A Leakproof seal forms by rotating the wing nut and hammering it tight.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Clamps.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Plated Steel
and / or Iron
Part Number
316 Stainless Steel
Part Number
Hose Shank x Female NPT
WF3 - 3/8"
WF6 - 1/2"
WF26-1 - 1/2" x 3/4"
WF26 RWF26 3/4"
WF36 RWF36 1"
WF51 RWF51 1-1/4"
WF61 RWF61 1-1/2"
WF81* RWF81* 2"
WF96 - 2-1/2"
WF111 - 3"

* Not to be used with #250, #275, or #306 Boss clamps

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
