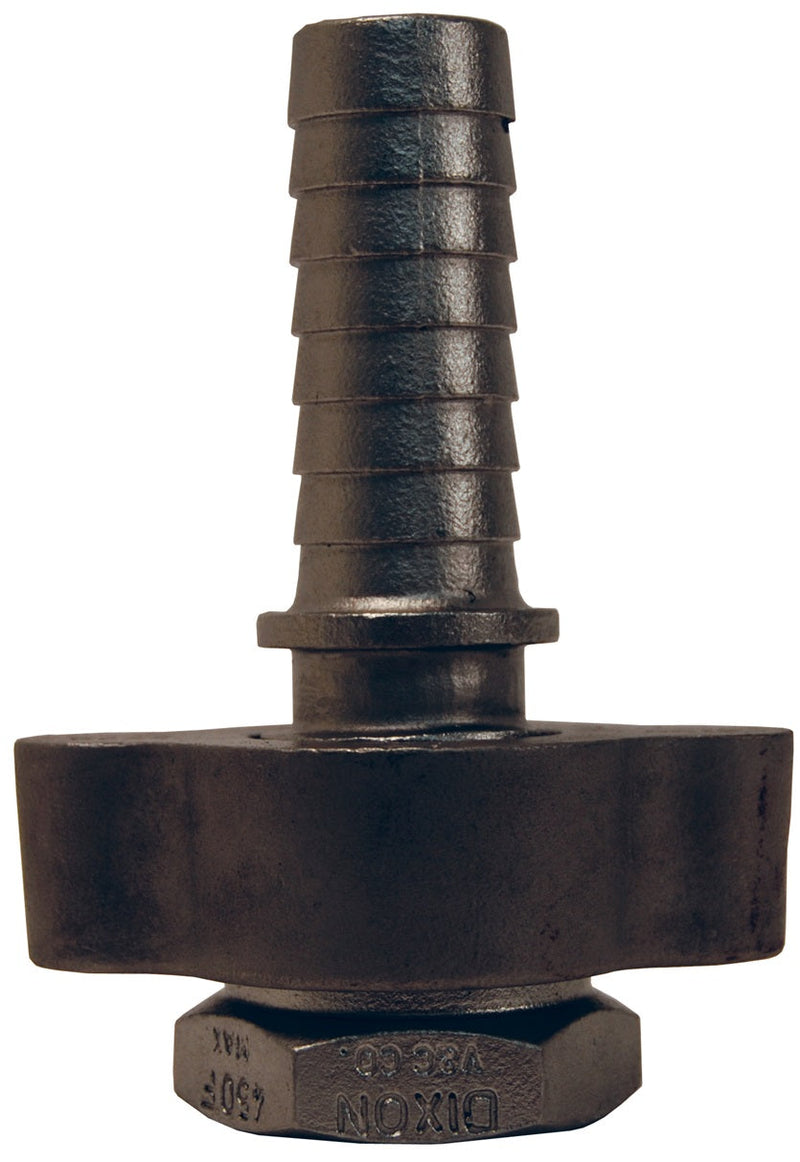

RWF51 by Dixon Valve | Boss® Washer Seal | Coupling with Female Spud | 1-1/4" Female NPT x Hose Shank | 316 Stainless Steel

RWF51 by Dixon Valve | Boss® Washer Seal | Coupling with Female Spud | 1-1/4" Female NPT x Hose Shank | 316 Stainless Steel

Save $27.13 Save $27.13
$244.18
$244.18 - $244.18
$244.18
$217.05
$217.05 - $217.05
$217.05

Dixon Valve
Boss® | Washer Seal Coupling with Female Spud

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.
Specifications for Variant SKU: RWF51 Dixon
Brand: Boss
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Female NPT, 1-1/4in Hose Barb
Material(s): 316 Stainless Steel
Seal Material(s): Klingersil C-4401
Features:
  • Easy to seal.
  • A Klingersil® C-4401 washer is inserted between the stem and spud.
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. A Leakproof seal forms by rotating the wing nut and hammering it tight.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Clamps.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Plated Steel
and / or Iron
Part Number		 316 Stainless Steel
Part Number		 Hose Shank x Female NPT
WF3 - 3/8"
WF6 - 1/2"
WF26-1 - 1/2" x 3/4"
WF26 RWF26 3/4"
WF36 RWF36 1"
WF51 RWF51 1-1/4"
WF61 RWF61 1-1/2"
WF81* RWF81* 2"
WF96 - 2-1/2"
WF111 - 3"

* Not to be used with #250, #275, or #306 Boss clamps
