SFK-16 Couplamatic VARI-CRIMP Coupling - Code 61 Split Flange Kit - 1" Flange Size - Complete Kit

SFK-16 by Couplamatic | VARI-CRIMP Coupling | 1" Split Flange Size | Code 61 | Complete Kit | Trivalent Zinc Plating

Save $1.11

$11.09

$11.09 - $11.09

$11.09

$9.98

$9.98 - $9.98

$9.98

Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange Kits

Quantity

Specifications for Variant SKU: SFK-16 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1in Code 61 Flange
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

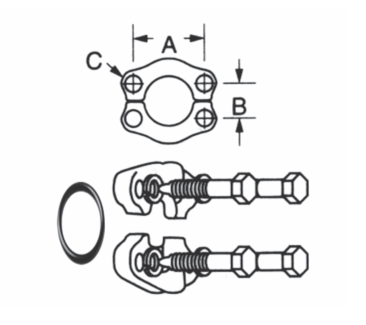

Part Number Complete Kit	Part Number O-Ring	Flange Size	A Inches	A Inches	A Inches
SFK-8	8252	1/2"	1.50"	0.69"	11/32"
SFK-12	12252	3/4"	1.88"	0.88"	13/32"
SFK-16	16252	1"	2.06"	1.03"	13/32"
SFK-20	20252	1-1/4"	2.31"	1.19"	15/32"
SFK-24	24252	1-1/2"	2.75"	1.41"	17/32"
SFK-32	32252	2"	3.06"	1.69"	17/32"
