SFK-20 Couplamatic VARI-CRIMP Coupling - Code 61 Split Flange Kit - 1-1/4" Flange Size - Complete Kit

SFK-20 by Couplamatic | VARI-CRIMP Coupling | 1-1/4" Split Flange Size | Code 61 | Complete Kit | Trivalent Zinc Plating

Save $8.11

$20.27

$20.27 - $20.27

$20.27

$12.16

$12.16 - $12.16

$12.16

Couplamatic Systems Inc.
Vari-Crimp Couplings - Code 61 Split Flange Kits

Specifications for Variant SKU: SFK-20 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Code 61 Flange
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Vari-Crimp — Universal Crimp

12252 Vari-Crimp — Code 61 Split Flange

12252 is the Code 61 Split Flange configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?

The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.

2

Which sizes are available?

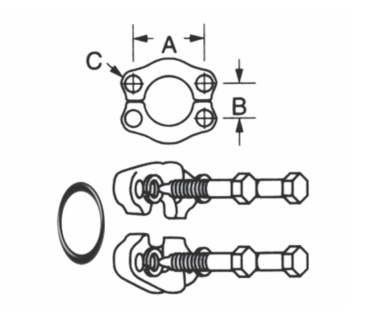

Part Number Complete Kit	Part Number O-Ring	Flange Size	A Inches	A Inches	A Inches
SFK-8	8252	1/2"	1.50"	0.69"	11/32"
SFK-12	12252	3/4"	1.88"	0.88"	13/32"
SFK-16	16252	1"	2.06"	1.03"	13/32"
SFK-20	20252	1-1/4"	2.31"	1.19"	15/32"
SFK-24	24252	1-1/2"	2.75"	1.41"	17/32"
SFK-32	32252	2"	3.06"	1.69"	17/32"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
