SFK62-24 Couplamatic Grip Crimp 6GC Series Coupling - Code 62 Split Flange Kits - 1-1/2" Flange Size - Complete Kit

SFK62-24 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/2" Split Flange Size | Code 62 | Complete Kit

Save $3.84 Save $3.84
$38.44
$38.44 - $38.44
$38.44
$34.60
$34.60 - $34.60
$34.60

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 62 Split Flange Kits
Specifications for Variant SKU: SFK62-24 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Code 62 Flange
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

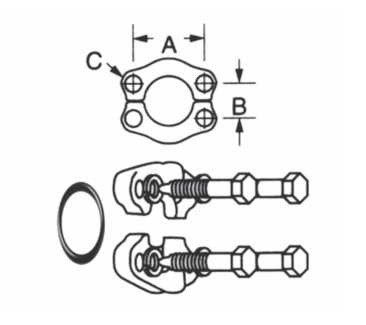

    Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
    SFK62-12 12252 3/4" 2.00" 0.94" 13/32"
    SFK62-16 16252 1" 2.25" 1.09" 15/32"
    SFK62-20 20252 1-1/4" 2.63" 1.25" 17/32"
    SFK62-24 24252 1-1/2" 3.12" 1.44" 21/32"
    SFK62-32 32252 2" 3.81" 1.75" 25/32"
    Couplamatic Systems Inc

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
