SFK62-20 Couplamatic GW Series Coupling - Code 62 Split Flange Kits - 1-1/4" Flange Size - Complete Kit

SFK62-20 by Couplamatic | GW Series Coupling | 1-1/4" Split Flange Size | Code 62 | Complete Kit

Save $17.77 Save $17.77
$44.42
$44.42 - $44.42
$44.42
$26.65
$26.65 - $26.65
$26.65

Couplamatic Systems Inc.
GW Series - Code 62 Split Flange Kits
Specifications for Variant SKU: SFK62-20 Couplamatic
Series: GW Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Code 62 Flange
Material(s): Steel
Compatible with the following Series: SP580 Series  |   CS-FLEX 4 Series  |   DHEXR12 Series  |   CS-FLEX 5 Series  |   2SN Series
Split Flange Kit — Complete

SFK62 GW Series Split Flange Kit — Code 62 Split Flange, Complete Kit

SFK62 is the Code 62 Split Flange, Complete Kit configuration of the GW Series Split Flange Kit, terminating GW Series split flange connections.

1

What are the main product features?
  • NO SKIVE REQUIRED
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating
  • Complete kit — flange halves, bolts and O-ring supplied together.
  • Everything needed for one connection — no separate hardware to source.
  • Matched to the flange code — order the kit that matches the flange head on the coupling.
2

Which sizes are available?

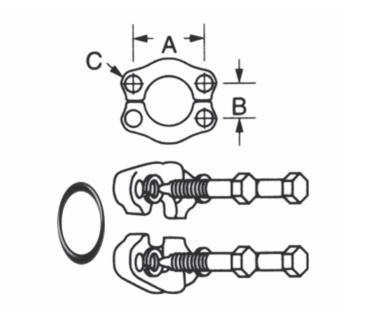

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFK62-12 12252 3/4" 2.00" 0.94" 13/32"
SFK62-16 16252 1" 2.25" 1.09" 15/32"
SFK62-20 20252 1-1/4" 2.63" 1.25" 17/32"
