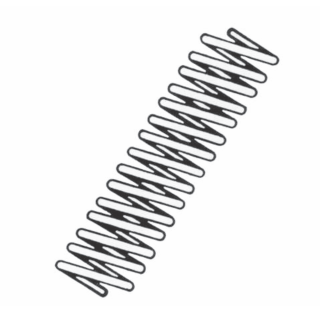

SG650 by Couplamatic | Round Wire Spring Guard | .080 Wire Size | .650" Coil ID | .375 Pitch | 20ft

Save $4.68

$46.81

$46.81 - $46.81

$46.81

$42.13

$42.13 - $42.13

$42.13

Couplamatic Inc
Accessories: Round Wire Spring Guards

Quantity

Specifications for Variant SKU: SG650 Couplamatic
Series:	Round Wire Spring Guard Series

Note:
When cutting spring guard, remove all sharp edges before installing on hose!

Part Number	Wire Size	Coil ID	Pitch	Length
SG550	.063"	.550"	.250"	20 ft
SG610	.063"	.610"	.250"	20 ft
SG650	.080"	.650"	.375"	20 ft
SG750	.080"	.750"	.325"	20 ft
SG835	.080"	.835"	.188"	20 ft
SG900	.080"	.900"	.375"	20 ft
SG990	.080"	.990"	.325"	20 ft
SG1055	.080"	1.055"	.375"	20 ft
SG1240	.080"	1.240"	.250"	20 ft
SG1300	.080"	1.300"	.350"	20 ft
SG1630	.120"	1.630"	.425"	20 ft
SG2125	.120"	2.125"	.375"	20 ft

Spring Guard Recommendation by Hose Type:
Hose ID	100R1 Std. 54MB-1	100R2 Std. 54MB-2	100R1 Thin 57MB-1	100R2 Thin 57MB-2	Hy-Plus I HPI	Hy-Plus II HPII	100R3 3319A	100R4 104MB	100R12 SP580
1/4"	SG650	SG750	SG550	SG610	-	-	SG610	-	-
3/8"	SG835	SG900	SG750	SG750	SG750	-	SG750	-	-
1/2"	SG990	SG990	SG835	SG900	SG835	-	SG990	-	SG990
5/8"	-	-	SG990	SG1055	-	-	-	-	-
3/4"	SG1240	SG1300	SG1240	SG1240	-	SG1240	SG1300	SG1300	SG1240
1"	SG1630	SG1630	SG1630	SG1630	-	SG1630	SG1630	SG1630	SG1630
1-1/4"	SG2125	SG2125	SG2125	SG2125	-	SG2125	SG2125	SG2125	SG2125
