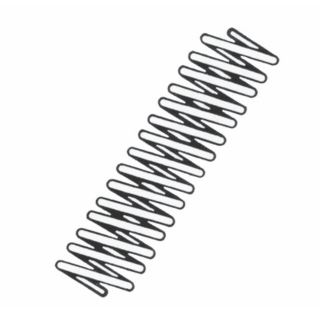

SG990 by Couplamatic | Round Wire Spring Guard | .080 Wire Size | .990" Coil ID | .325 Pitch | 20ft

SG990 by Couplamatic | Round Wire Spring Guard | .080 Wire Size | .990" Coil ID | .325 Pitch | 20ft

Save $5.66 Save $5.66
$56.59
$56.59 - $56.59
$56.59
$50.93
$50.93 - $50.93
$50.93

Couplamatic Inc
Accessories: Round Wire Spring Guards
Specifications for Variant SKU: SG990 Couplamatic
Series: Round Wire Spring Guard Series
Note:
  • When cutting spring guard, remove all sharp edges before installing on hose!
Part Number Wire Size Coil ID Pitch Length
SG550 .063" .550" .250" 20 ft
SG610 .063" .610" .250" 20 ft
SG650 .080" .650" .375" 20 ft
SG750 .080" .750" .325" 20 ft
SG835 .080" .835" .188" 20 ft
SG900 .080" .900" .375" 20 ft
SG990 .080" .990" .325" 20 ft
SG1055 .080" 1.055" .375" 20 ft
SG1240 .080" 1.240" .250" 20 ft
SG1300 .080" 1.300" .350" 20 ft
SG1630 .120" 1.630" .425" 20 ft
SG2125 .120" 2.125" .375" 20 ft


Spring Guard Recommendation by Hose Type:
Hose ID 100R1 Std.
54MB-1		 100R2 Std.
54MB-2		 100R1 Thin
57MB-1		 100R2 Thin
57MB-2		 Hy-Plus I
HPI		 Hy-Plus II
HPII		 100R3
3319A		 100R4
104MB		 100R12
SP580
1/4" SG650 SG750 SG550 SG610 - - SG610 - -
3/8" SG835 SG900 SG750 SG750 SG750 - SG750 - -
1/2" SG990 SG990 SG835 SG900 SG835 - SG990 - SG990
5/8" - - SG990 SG1055 - - - - -
3/4" SG1240 SG1300 SG1240 SG1240 - SG1240 SG1300 SG1300 SG1240
1" SG1630 SG1630 SG1630 SG1630 - SG1630 SG1630 SG1630 SG1630
1-1/4" SG2125 SG2125 SG2125 SG2125 - SG2125 SG2125 SG2125 SG2125
